- Gloss Meter
- 20,60 & 85 degree
- 0-2000GU

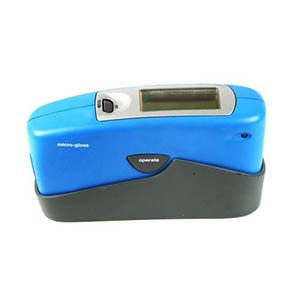

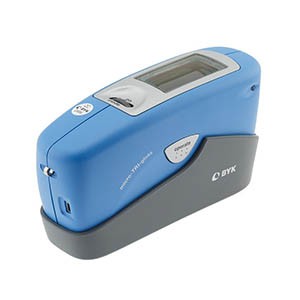

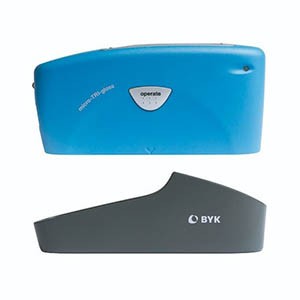

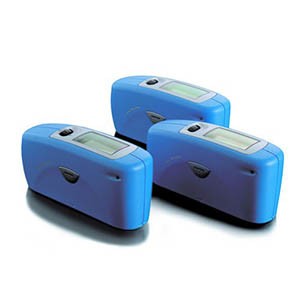

Universal gloss meter for high - semi - low gloss surfaces 20, 60 and 85° angle in one instrument Universal application from high to low gloss
Product Description
Gloss Meter Introduction
Three angle gloss meter - see gloss changes under the right angle. In order to obtain differences clearly over the whole range from matte to high gloss, three measurement geometries were specified in international glossmeter standards. Each geometry is optimized for a specific gloss range.
The micro-TRI-gloss combines 20°, 60° and 85° in one glossmeter - having three geometries in one unit allows you to be in compliance with international standards and to quickly recognize quality variations.
20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
For any material: paint, plastic or even mirror-like metals
All angles measure at the same location, and the results appear simultaneously
- Intelligent gloss measurement with smart communication
- Excellent repeatability and inter-instrument agreement guaranteed
- Intelligent auto diagnosis guarantees always accurate readings
- Brilliant color display easy to read - easy to use
- Statistics, Pass/Fail and Memory - ideal for QC and checks in the field
- Continuous mode to check uniformity over large areas
- smart-chart software: instant QC reports with trend graph and Pass/Fail limit
Gloss Meter Technical Data
|
Test Angles |
20°, 60°, 85° |
|
Application |
Universal |
|
Spectral Sensitivity |
CIE standard observer for illuminant CIE-C |
|
General Measuring Time |
0.5 seconds per geometry |
|
Memory Capacity |
999 readings with date and time stamp |
|
Communication Interface |
USB |
|
Supported Languages |
English, French, German, Italian, Spanish |
|
20° Geometry |
10 x 10 mm (0.4 x 0.4 in) |
|
60° Geometry |
9 x 15 mm (0.35 x 0.6 in) |
|
85° Geometry |
5 x 38 mm (0.2 x 1.5 in) |
|
20° Geometry |
0 - 2000 GU |
|
60° Geometry |
0 - 1000 GU |
|
85° Geometry |
0 - 160 GU |
|
0 - 100 GU Range |
± 0.2 GU (all geometries) |
|
100 - 2000 GU Range |
± 0.2 % (all geometries) |
|
0 - 100 GU Range |
± 0.5 GU (all geometries) |
|
100 - 2000 GU Range |
± 0.5 % (all geometries) |
|
Power Supply Options |
1 x 1.5V AA Alkaline Battery, or via USB port |
|
Battery Capacity |
Up to 4,000 readings per full battery |
|
Weight |
0.4 kg (0.9 lb) |
|
Dimensions (L x W x H) |
15.5 x 4.8 x 7.3 cm (6.1 x 1.9 x 2.9 in) |
|
Operating Temperature |
15 - 40 °C (60 - 104 °F) |
|
Relative Humidity |
Up to 85%, non-condensing |
Gloss Meter Standards
ISO 2813，ISO 7668，ASTM D523，ASTM D2457，JIS Z 8741，DIN 67530
Gloss Meter Packing List
|
No. |
Item |
|
1 |
Gloss meter |
|
2 |
Calibration holder TRI (4447) |
|
3 |
USB-cable micro-gloss (4405) |
|
4 |
Software with 2 licenses for download: smart-lab Gloss (4866) or smart-process Gloss (4867) |
|
5 |
Battery |
|
6 |
Traceable certificate |
|
7 |
Manual |
|
8 |
Carrying case |
