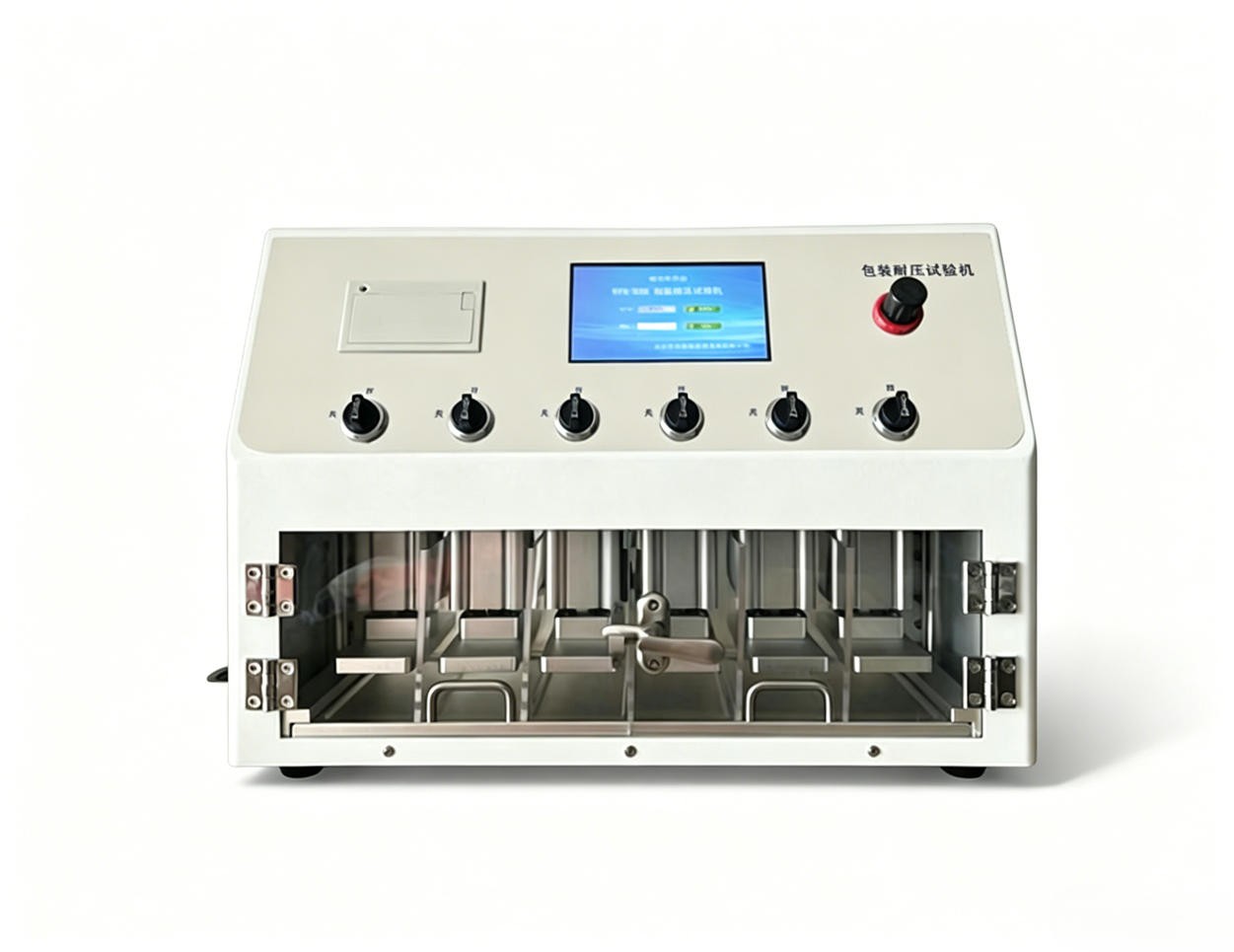

Packaging Compression Resistance Tester
- ST-02H
- 0.1 MPa ~ 0.7 MPa
- 1.0 s ~ 99999.9 s
specially designed for compression damage and leakage tests of small packaging pouches. It can simultaneously test 6 finished pouches for breakage and leakage under specified test pressure and holding time.
Product Description
Product Introduction
This ZY-02H Packaging Compression Resistance Tester is specially designed for compression damage and leakage tests of small packaging pouches. It can simultaneously test 6 finished pouches for breakage and leakage under specified test pressure and holding time.
1. Application Fields
| Classification | Application Scope |
|---|---|
| Basic Application | Compression test for food sauce pouches (instant noodle sauce, ketchup, salad dressing, vegetable seasoning, jam, cream pouches, etc.) and daily chemical packaging |
| Extended Application | Wide range of packaging test scenarios. Customized functions can meet compression, rupture, extrusion and sealing tests for various flexible packages within the measuring range |
2. Test Principle
Place 1–6 test samples on the test platform. The instrument regulates the pressure reducing valve to drive the upper pressing plate downwards via the cylinder until the preset pressure value is reached. The test system starts timing automatically; upon completion of the set time, the upper plate reverses and lifts up. The whole reciprocating compression cycle evaluates the rupture and leakage performance of pouches under designated pressure and duration.
3. Product Features
- 7-inch touch screen operation, power-on password login with four-level authority management
- Dual test modes: constant pressure holding test and bursting strength test
- 6 test stations for simultaneous testing; more stations available upon customization
- Standard pneumatic pressure testing system; optional force (N) measurement module and functions
- Fully automatic testing: automatic judgment, automatic return and automatic stop
- Queryable historical test data records with non-editable data
- Branded high-precision sensors with multiple optional measuring ranges
- Support input of test temperature & humidity conditions, which will be displayed on test reports
- Integrated sample tray for easy loading, pushing samples to the test area, simple to clean and operate
- Standard built-in mini thermal printer with data query, statistics and printing functions
- Optional professional PC communication software supporting data traceability, multi-level permission management, audit trails and electronic signature functions
4. Technical Specifications
| Item | Parameter |
|---|---|
| Test Pressure Range | 0.1 MPa ~ 0.7 MPa |
| Test Holding Time | 1.0 s ~ 99999.9 s |
| Number of Test Stations | 6 stations |
| Air Supply Pressure | 0.7 MPa ~ 0.8 MPa (air compressor to be supplied by user) |
| Air Connector | Φ8 mm polyurethane tube |
| Specimen Pressing Plates | 6 pieces (60 mm × 160 mm each) |
| Overall Dimensions | 550 mm (L) × 210 mm (W) × 375 mm (H) |
| Power Supply | AC 220 V 50 Hz (standard; other voltages require customization) |
| Approx. Net Weight | 30 kg |
5. Standard & Optional Configurations
- Standard Accessories: Main unit (with integrated sample tray), mini thermal printer, foot pedal switch
- Optional Accessories: Communication cable & professional software, customized force measurement module, custom fixtures for compression and bursting tests
