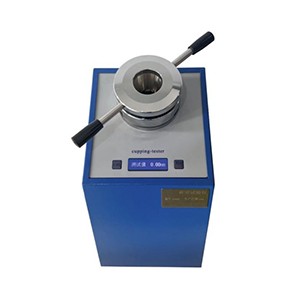

- ST-2705
Automatic Cupping Tester is designed to detect the extension and damage of single coating and multi coating coatings on substrates. The motor-driven punch has extremely high reproducibility. No need to zero the steel plate, it will automatically return to zero after the test, with no cumulative error. Using high-precision position sensors, the indentation accuracy can reach 0.01 mm. A 10x illumina
Product Description
Automatic Cupping Tester is designed to detect the extension and damage of single coating and multi coating coatings on substrates. The motor-driven punch has extremely high reproducibility. No need to zero the steel plate, it will automatically return to zero after the test, with no cumulative error. Using high-precision position sensors, the indentation accuracy can reach 0.01 mm. A 10x illuminated magnifying glass with standard requirements is included for easy observation and judgment of test results. A test plate with a maximum thickness of 1.25 mm can be measured. Digital display, all functions controlled by 2 buttons.
Standard:GB/T 9753, ISO 1520
Technical Parameter
|
Input voltage |
220V AC 50Hz |
|
Punch diameter |
20 mm |
|
Collapse depth |
0-14 mm |
|
Indexing value of compression |
0.01 mm |
|
Compression accuracy |
0.05 mm |
|
Test plate thickness |
1.25 mm |
|
Test board width |
70 mm |
|
External dimensions |
230×360×430 mm |
|
Shipping weight |
40 kg |
