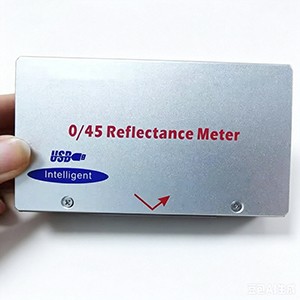

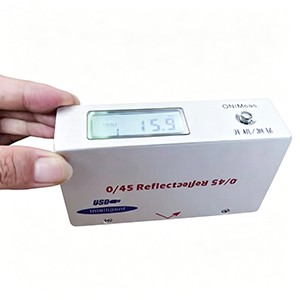

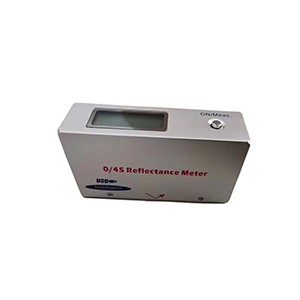

- ST-583
Opacity Meter is designed to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of coatings hiding power/opacity, or simple shade sorting tasks of metallized films, anodized aluminum or ceramics. It can calculate the contrast ratio (opacity) and store it. The operator can call up the data when required. It complies with ISO 2814,ISO 3906 , ISO 6504,BS 3900 a
Product Description
Opacity Meter is designed to measure the opacity, or luminous reflectance, of a grey scale. Suitable for the evaluation of coatings hiding power/opacity, or simple shade sorting tasks of metallized films, anodized aluminum or ceramics. It can calculate the contrast ratio (opacity) and store it. The operator can call up the data when required. It complies with ISO 2814,ISO 3906 , ISO 6504,BS 3900 and DIN 55984.
Feature
1. Small and light weight, easy to be carried and used.
2. Auto zero calibration, easy for operation.
3. One 1.5V alkaline Battery can be used for almost 60 hours and 10000 readings.
4. Special moisture-proofing process, allows to use in a variety of harsh environments.
5. Long-term stable light source.
6. National calibration white tile to transfer standard value, accurate and reliable.
Technical Data
|
Model |
ST-583 Opacity Meter |
|
Working angle |
45°(irradiate),0°(receive);CIE Illuminant C |
|
Range of Measurement |
0-100 units |
|
Resolution |
0.1% |
|
Accuracy |
±1 unit or 1% (full scale) |
|
Power Supply |
One 1.5V alkaline battery or rechargeable |
|
Screen Size |
12×17mm(ellipse) |
|
Instrument Size |
114×32×64mm |
|
Instrument Weight |
180g |
|
Testing Environment |
10-40 ℃, relative humidity should not be less than 85% |

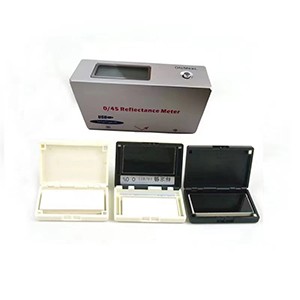

Packing List
|
Name |
Qty. |
Name |
Qty. |
|
Plastic Packing Box |
1 |
Calibration Tile |
1 |
|
Main Instrument |
1 |
White Tile |
1 |
|
Operate Manual |
1 |
USB Cable |
1 |
