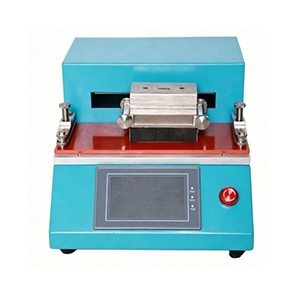

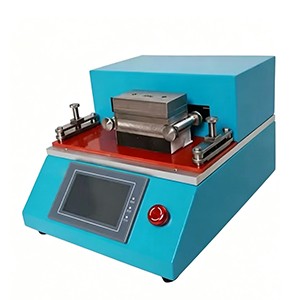

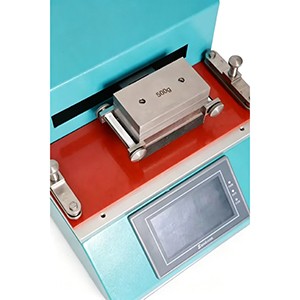

- ST-RT1
The (Solvent) Rub Resistance Tester adopts reciprocating wiping motion to test the solvent rub resistance of paints & inks, or paper rub resistance of coated surfaces. It realizes reciprocating wiping movement via a crank-slider mechanical structure. ZHIYI-RT1 Rub Resistance Tester is designed to test paper friction resistance of cured sample surfaces in laboratory, complying with ASTM D5264 stand
Product Description
The (Solvent) Rub Resistance Tester adopts reciprocating wiping motion to test the solvent rub resistance of paints & inks, or paper rub resistance of coated surfaces. It realizes reciprocating wiping movement via a crank-slider mechanical structure.
ST-RT1 Rub Resistance Tester is designed to test paper friction resistance of cured sample surfaces in laboratory, complying with ASTM D5264 standard.
Technical Data
|
Model |
ST-RT1 Rub Resistance Tester |
|
One-way Wiping Stroke |
110 mm |
|
Wiping Speed |
20~85 rpm |
|
Reciprocating Cycle Setting Range (1 cycle = one back-and-forth wipe) |
0~65535 cycles |
|
Max Sample Size |
50 × 250 mm |
|
Wiping Head Contact Area |
50 × 90 mm |
|
Standard Wiping Head Weight |
1000 g |
|
Optional Additional Weights |
250 g, 250 g, 500 g |
|
Instrument Operating Power Supply |
DC 24 V |
|
Power Adapter Input (Accessory) |
AC 100~240 V, 50/60 Hz |
|
Overall Outer Dimensions |
330 × 260 × 210 mm |
