Product Description

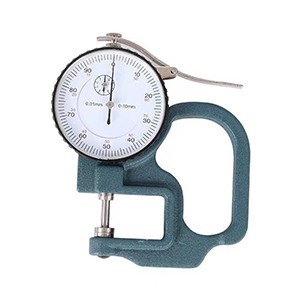

This mechanical dial thickness gauge is a classic handheld precision measuring tool, widely used to quickly detect the thickness of sheets, films, leather, paper, rubber and other thin materials. It features a robust cast iron C-shaped frame, intuitive analog dial display and easy lever operation, with stable measuring pressure and reliable long-term performance, suitable for factory quality control, laboratory sampling inspection and daily material testing.

Main Advantages

1. Mechanical Stable Structure

No battery required, zero electronic failure risk, works continuously in high-dust, low-temperature workshop environments. The thick cast iron frame effectively avoids deformation to guarantee consistent measuring accuracy.

2. Clear Analog Dial Reading

Large dial panel with fine scale markings, dual-circle pointer design for quick and accurate thickness reading, easy for operators to master without training.

3. Uniform Measuring Pressure

Built-in constant spring pressure system ensures consistent compression on soft materials such as leather and foam, avoiding measurement deviation caused by manual pressing force differences.

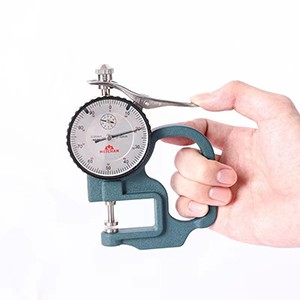

4. Convenient Handheld Operation

Light pull trigger lever opens the measuring gap with one hand; the C-shaped frame can reach most strip and sheet samples, flexible for batch rapid detection.

5. Wide Compatibility

Flat measuring tip will not scratch soft surfaces, applicable to both flexible and rigid thin materials.

Application

1.      Packaging & Printing: Paper, cardboard, plastic film, aluminum foil thickness inspection

2.      Leather & Textile: Leather, fabric, non-woven fabric thickness measurement

3.      Rubber & Plastic: Silicone sheets, PVC films, foam rubber slice testing

4.      Hardware & Metal: Thin copper foil, aluminum sheet, metal gasket thickness check

5.      Laboratory R&D: Raw material thickness sampling and quality verification

Technical Data
