Product Description

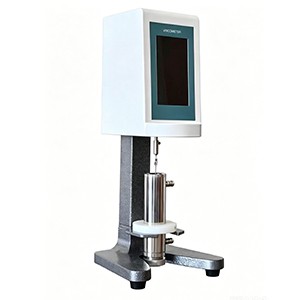

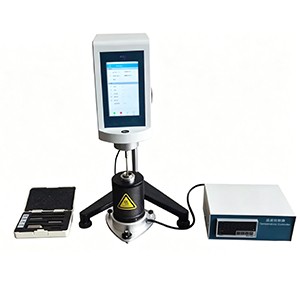

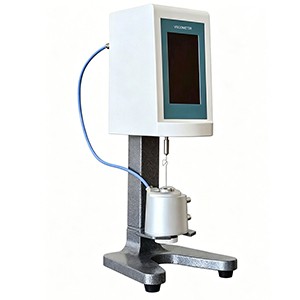

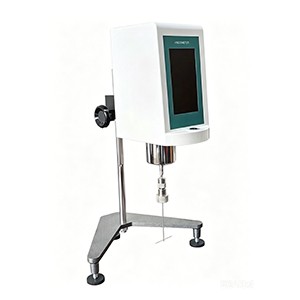

Professional Touch-screen Rotary Viscometers are upgraded version. They are equipped a 7 inch touch Iscreen with a powerful human-machine interface , easy to use and can work with variable speeds.

Viscometer Features

1. It adopts high-precision ipa touch screen ARM processor without angle, imported stepping motor and driver, which is an upgraded product of similar LCD screen.
2. It can display KU value, CP value, load (grams), temperature and time at the same time.
3. The accuracy is higher than that of ordinary models, and the full-scale accuracy is ±1%.
4. The temperature and viscosity curve can be displayed directly on the display screen.
5. When the machine encounters a blockage or exceeds the range, the motor will automatically stop and protect, and an alarm will be issued;
6. The test process is simple and convenient, and there is no need to change the rotor in the whole test range;
7. With 232 serial ports, optional micro printer, real-time printing data, standard temperature probe, intuitive display of the current temperature of the sample, can save 40 sets of data measurement data,
8. Optional computer software can accurately analyze the characteristics of samples.
9. It adopts a free lifting structure, which can freely adjust the height according to the amount of the sample. It is different from the traditional Stormer viscometer pressure rod structure. The advantage is that it can accurately control the level of the rotor liquid level and the sample liquid level. Accuracy of sample viscosity is critical.

Viscometer Technical Data
