- ST-F820
- 0-999.9S, resolution 0.1S
- 12s (adjustable)
- 110V/220V, 50Hz/60Hz

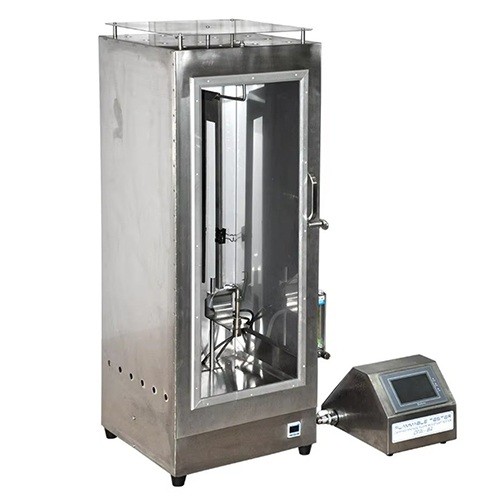

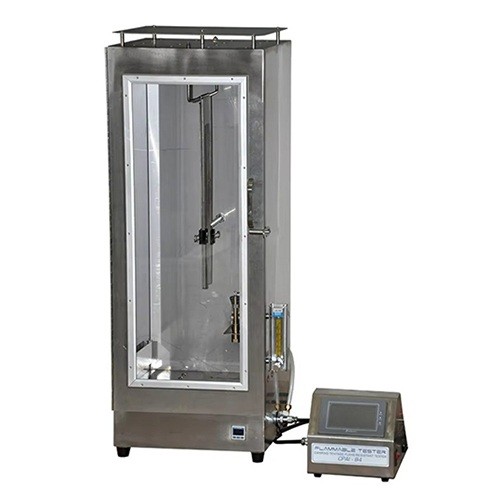

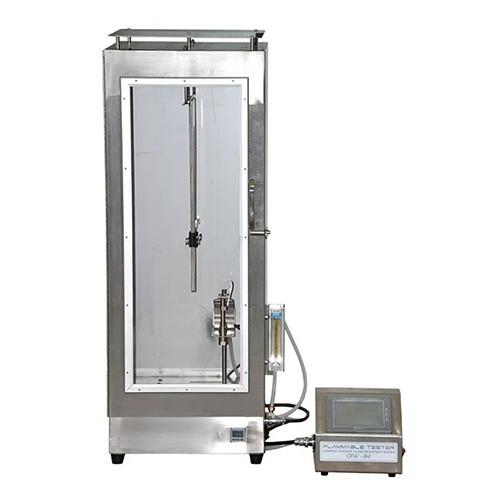

The vertical fabric flammability test equipment is used to test the flame retardant, flame retardant and carbonization trend after fabric. It can automatically determine the flammability of clothing fabrics, protective fabrics, curtains, and children's pajamas to vertical flames.
Product Description
The vertical fabric flammability test equipment is used to test the flame retardant, flame retardant and carbonization trend after fabric. It can automatically determine the flammability of clothing fabrics, protective fabrics, curtains, and children's pajamas to vertical flames.
Vertical Fabric Flammability Test Equipment Standards
ASTM D6413, GB/T 5455, 16CFR Part 1515/1516, CA TB117, CPAI-84
Vertical Fabric Flammability Test Equipment Features
1. Controlled by PLC, operated by high-resolution large color touch screen.
2. The combustion chamber is made of high-quality 304 stainless steel, clean tempered glass.
3. The flame height can be adjusted by knob
Vertical Fabric Flammability Test Equipment Technical Data
|
Type |
T |
S |
P |
|
Standard |
American Materials Testing Standard D6413 |
GB/T 5455, 16 CFR Part 1515/1516, CA TB117 |
CPAI-84 |
|
Time range and precision |
0-999.9S, resolution 0.1S |
||
|
Ignition time |
12S (Adjustable) |
||
|
Flame height |
38mm (adjustable) |
40 +/-2 mm (adjustable) |
19 mm / 38 +/-3 mm (adjustable) |
|
Tear weight |
100g/200g/300g/475g |
54.5g/113.4g/226.8g/ 340.2g/453.6g |
50g/100g/200g/350g |
|
Size: |
600x400x850mm |
470x370x860 mm |
|
|
weight |
40 kg |
||
|
Power supply |
110V/220V，50Hz/60Hz |
||
