Product Description

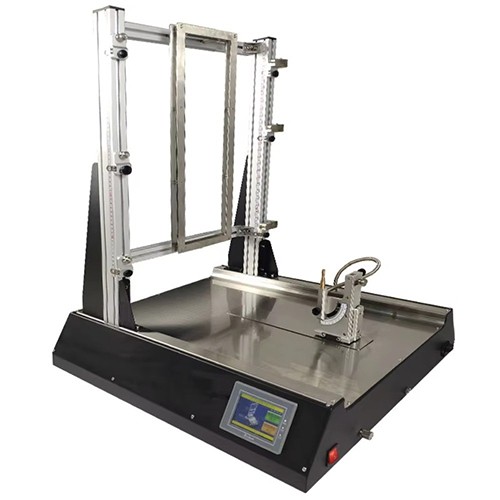

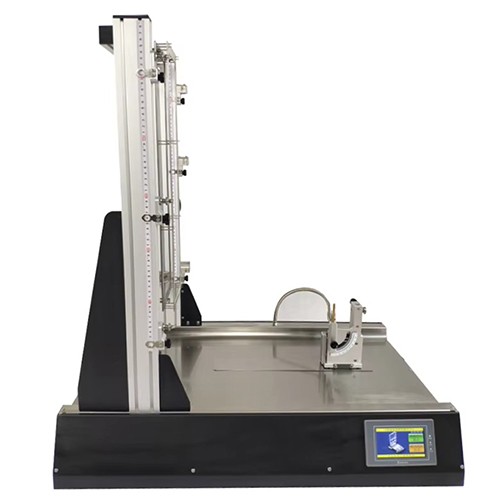

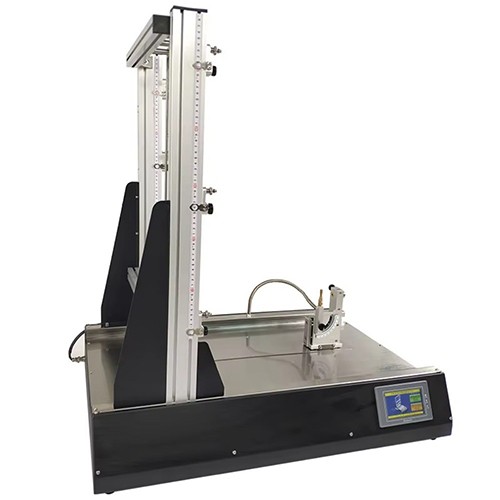

The vertical fabric flammability tester can automatically determine the flammability of clothing fabrics, protective fabrics, curtains, and children's pajamas to vertical flames.

Vertical Fabric Flammability Tester Standards

ISO 6940 / 6941 / ISO 15025 / EN 1101 / 1102 / BS 5867 / ECE R188 Annex 8

Vertical Fabric Flammability Tester Features

1. This test instrument has a new model upgrade with a compact design that optimizes the product shape, transmission structure and test structure.
2.The case adopts advanced CNC laser cutting and CNC bending forming process, which is precise and tight.
3.The surface of the cabinet is treated with electrostatic powder spraying paint process, and the paint surface is firm and durable.
4.Aluminum profile clamp side frame, black and white color matching, simple and elegant.
5.The clamp is made of high-quality SUS304 stainless steel with a brushed finish, which is beautiful and durable, and easy to clean.
6.Synchronous wheel drive, coordinated with the guide rod, stable and reliable operation, non-contact approach switch limit,
simple structure, smooth stroke, smoother and quieter operation.
7.The igniter can be rotated from 0° to 90° for easy flame height measurement and standard angle testing.
8.The height, left and right positions of the igniter can be adjusted to meet the position requirements of different samples and
different tests.
9.Standard-sized sample grippers can be hung directly from different hanging bars on the instrument side frame for testing.

Vertical Fabric Flammability Tester Technical Data
