It is designed to test the moisture permeability of all products including different types of fabrics, breathable coated fabrics and non-woven fabrics.
Product Description
It is designed to test the moisture permeability of all products including different types of fabrics, breathable coated fabrics and non-woven fabrics.
Water Vapor Permeability Tester Standards
GB/T12704, ASTM E96, JIS L1099, BS 7209
Water Vapor Permeability Tester Features
1. Integrated structure of oven and constant temperature and humidity box
2. Computer control, LCD Chinese menu operation
3. Flow circulation wind speed 0.02-1.5 m/s, digital set
4. Imported high-precision temperature and humidity sensor, imported motor driver, ceramic tube heating
Water Vapor Permeability Tester Technical Data
|
Working mode |

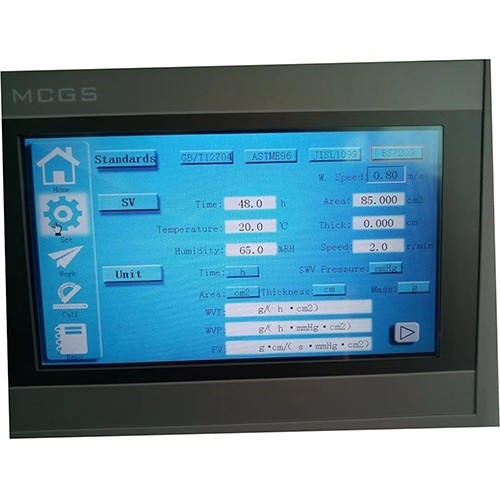

Computer control, LCD Chinese menu operation, test Environmental monitoring |
|
Test box temperature. Control range |
20 ~45 ℃; Distinguishability 0.1 °C |
|
Test box temperature. Control precision |
± 0.5 ℃ |
|
Humidity control of the test chamber |
40% Relative Humidity ~95% Relative Humidity 2% Relative Humidity |
|
Test chamber humidification |
≥ 300 ml/h |
|
Drying oven temperature. Control range |
Internal temperature. ~199 ℃ |
|
Test time |
1 minute ~999h59min |
|
Circulating air velocity |
0.02 ~1.5 m/s |
|
Penetration area |
2827 sqm (60 mm GB) Optional 3848 sqm (70mmASTM) |
|

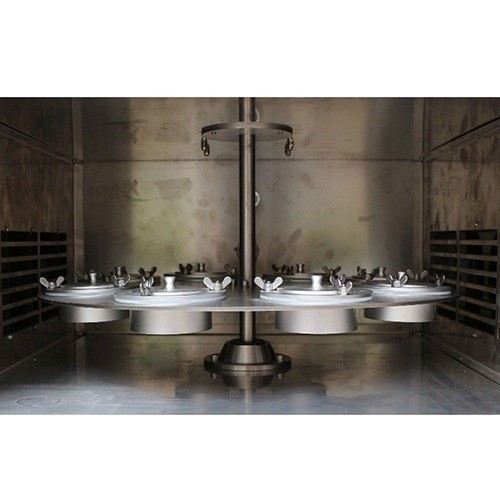

Number of moisture-permeable cups |
6 pieces |
|
Drying Oven Dimensions |
490*400*215 mm |
|
power supply |
AC220V 50Hz 4kW |
|
Exterior dimensions |
720*560*1570 mm |
|
weight |
100 kg |
