- ST-002T
- Wooden Box
- 5-7 days after payment received

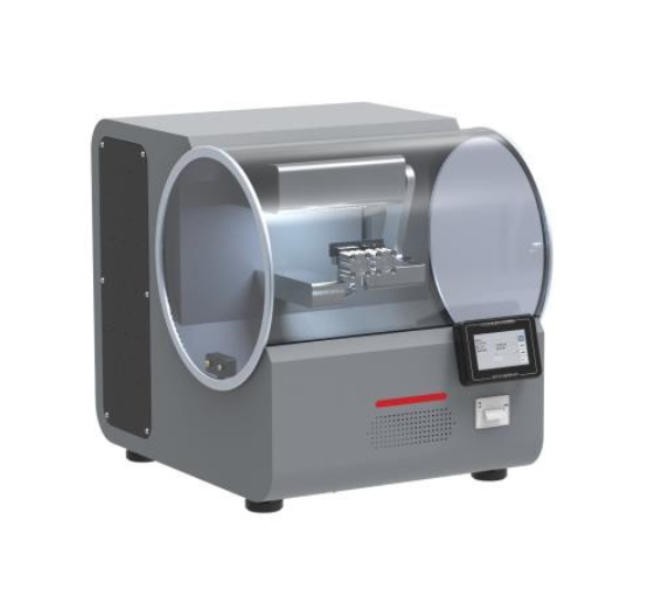

Elmendorf Tearing Tester is designed for determining the tear strength of various woven fabrics (Elmendorf method), and can also be used for determining the tear strength of thick paper, plastic sheeting, electrical tape, etc.
Product Description
An automatic and powerful Elmendorf-type tear strength tester determines tearing resistance of both light and heavy fabric materials. including but not limited to paper, cardboard, woven & nonwoven fabrics, woven materials, films, sheets, soft polyvinyl chloride, polyvinylidene chloride (PVDC), waterproof rolls, polyolefin, polyesterblankets.
STANDARDS
ISO 13937-1, ASTM D1424, JIS L 1096-8.15, BS 4253, GB/T3917.1
ASTM D5734, ISO 9034-4, FZ/T60006-B, ISO 1974, ASTM D689, GB/T455, TAPPI T414
ISO 6383-2, ASTM D1922, GB/T16578.2
Product Features
1, Powder-coated shell, special aluminum panels, metal switch buttons, smart and neat.
2, Large color touch screen display, easy menu mode of operation in English and Chinese.
3, Five ranges of measuring force, ultra-high to 300N.
4, Pneumatic clamping capable of a variety of materials with different thickness.
5, One-button-start, automatic closing the safety shield, automatic inciding, automatic range selecting, automatic weight loading, and automatic opening at the end of the test.
6, Equipped with sophisticated rotary encoder and automatic pendulum zeroing for best accuracy.
7, Easy switch between multiple units N, cN, kgf, gf, lbf, adaptable for different standards.
8, Built-in thermal printer for direct reports, and also supports online with PC for more.
9, Self reseached & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board.
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843)
TECH. PARAMETERS:
| Item | Parameter |
|---|---|
| Measurement range | A: 0~16N; B: 0~32N; C: 0~64N; D: 0~128N; E: 0~300N |
| Accuracy | ±0.5% F.S |
| Unit | N, cN, kgf, gf, lbf |
| Auto incision length | 20 ± 0.2 mm |
| Tearing length | 43 mm |
| Sample size | 100×63 mm |
| Maximum sample thickness | 5 mm |
| Dimensions (L×W×H) | 550×600×650 mm |
| Power | AC200V, 50Hz, 100W |
| Mass | 80 Kg |
