Application

This instrument is applicable to the rubbing test for evaluating color fastness in textiles, knitwear, leather, electrochemical metal plate, printing and other industries.



Standards

ISO 105X12、GB/T 3920、GB/T 5712、AATCC 8、AATCC 165、BS 1006 D02



Features

● Linear guide sliding, DC motor drive, PI control algorithm speed, make the instrument run smoothly, low noise.

● The operation of the instrument is stepless speed regulation,and the customer can set the speed freely according to the test requirements.

● The user can set the required working mode according to the needs

Counting mode: times counting, time counting;

● Pneumatic clamping, even clamping without slipping; pneumatic lifting of the grinding head, automatic lifting of the grinding head after the test; automatic dropping of the grinding head after starting; simple and convenient operation.



Specifications

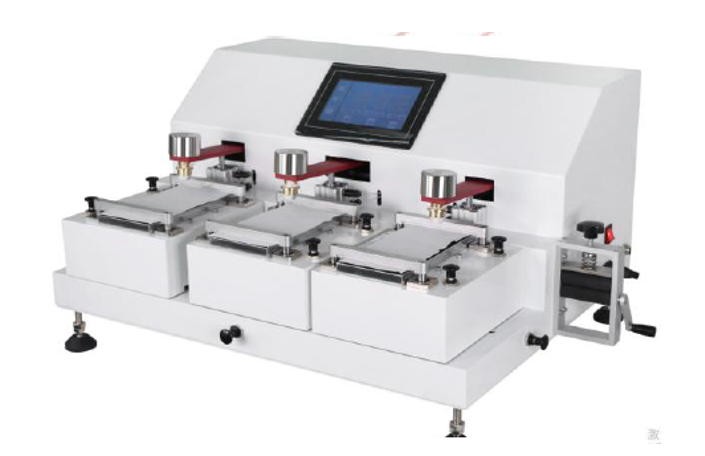

● Three station independent control,improve work efficiency

● Friction head pressure: 9N±0.2N

● Friction head: φ16mm; 19×25.4mm

● Friction head stroke: 104±3mm

● Speed range: 40～80±2times / min

● Counting times: 1-99999 times;

● Power:AC220V 50Hz 20W

● Demensions:800*430*380mm

● Weight: 45kg





Spare parts Lists :

1 Product manual: 1 set

2 Product certificate: 1 set

3 Inspection report: 1 set

4 Liquid container: 1 set

5 Standard sandpaper: 1 pcs

6 Friction cloths: 200 pcs

7 Circular friction head: 3 set φ16mm

8 Rectangular friction head: 3 set 19*25.4 mm

9 Allen key: 1 set

10 9N Weight/9N:1 set

11 Fuse: 2 set 5A

12 Trachea:1 set

13 Power line:1 set
