Product Description

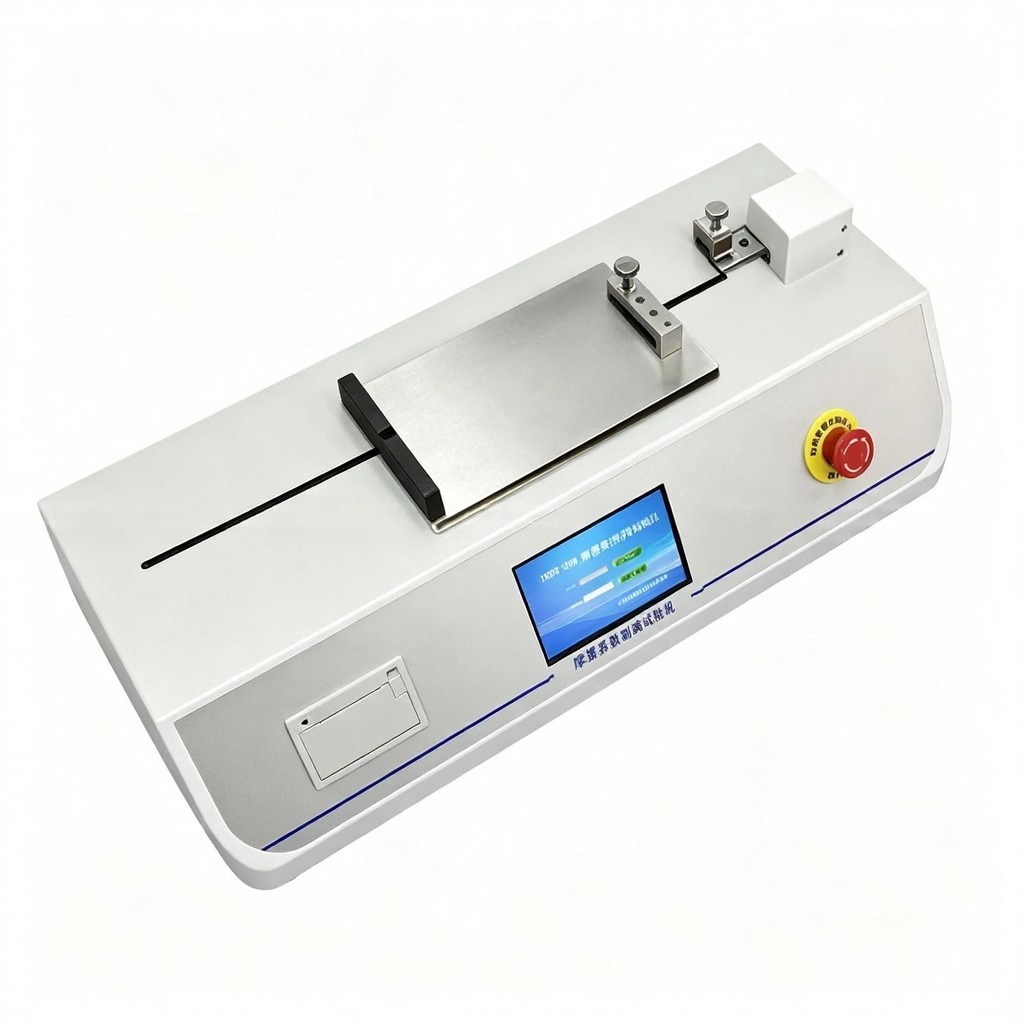

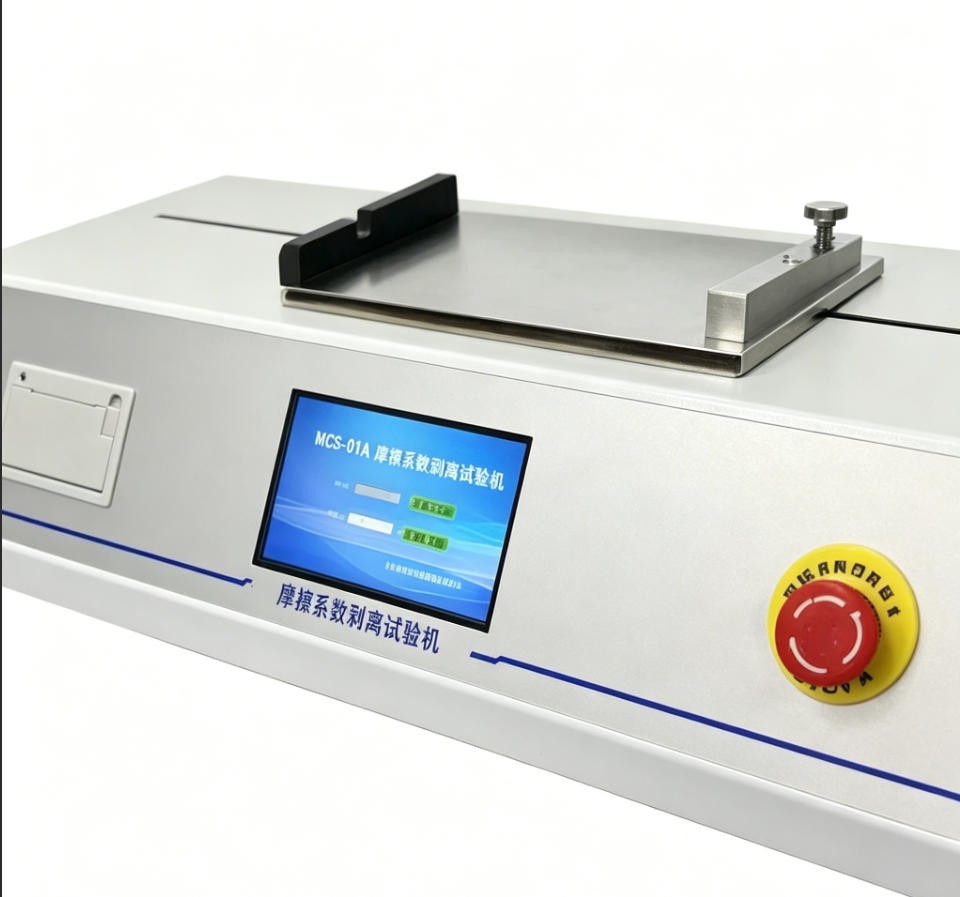

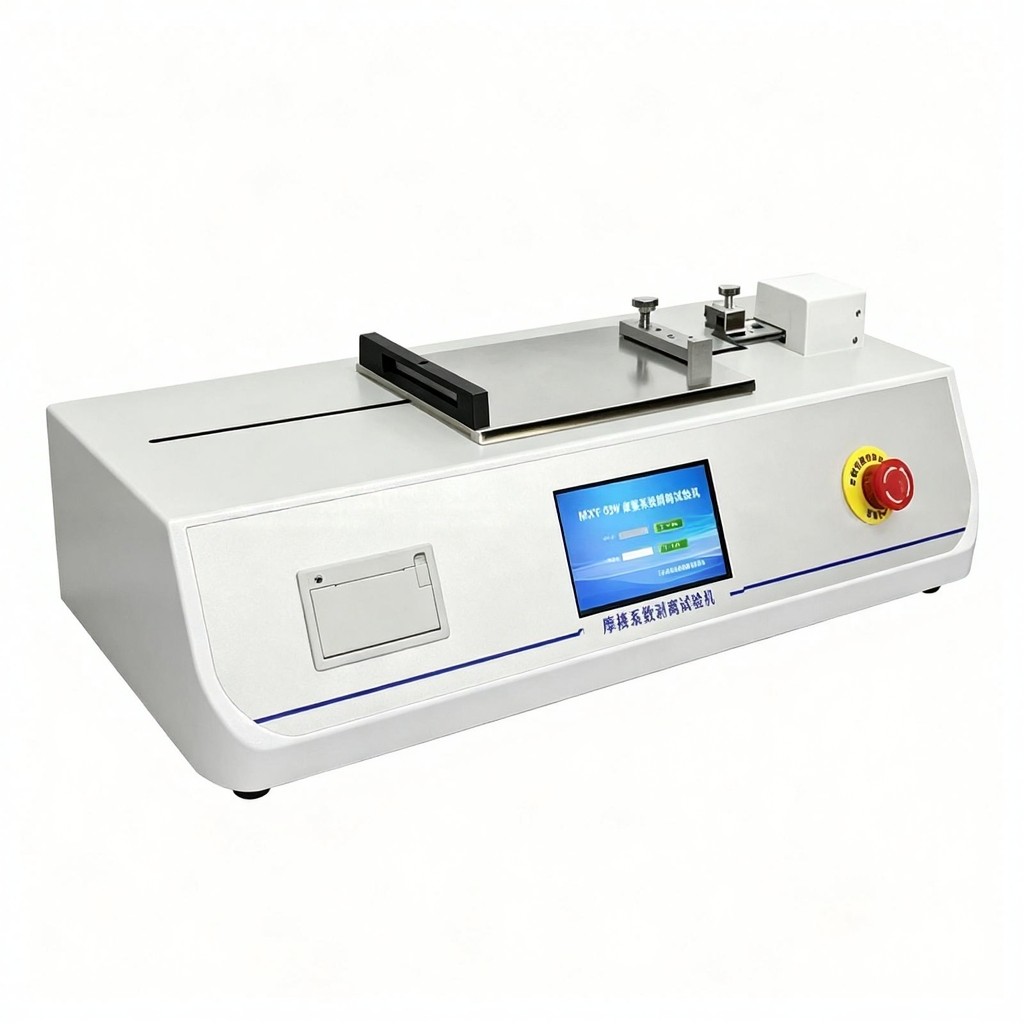

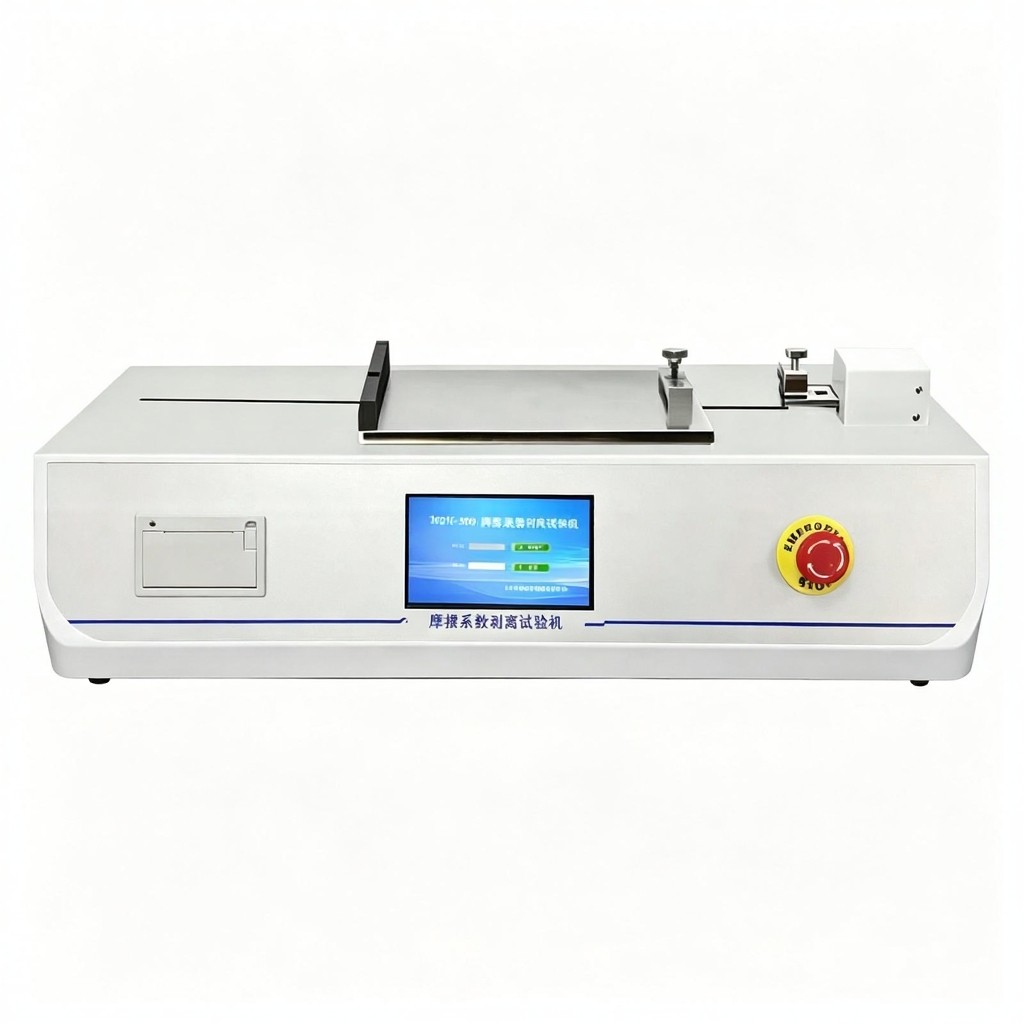

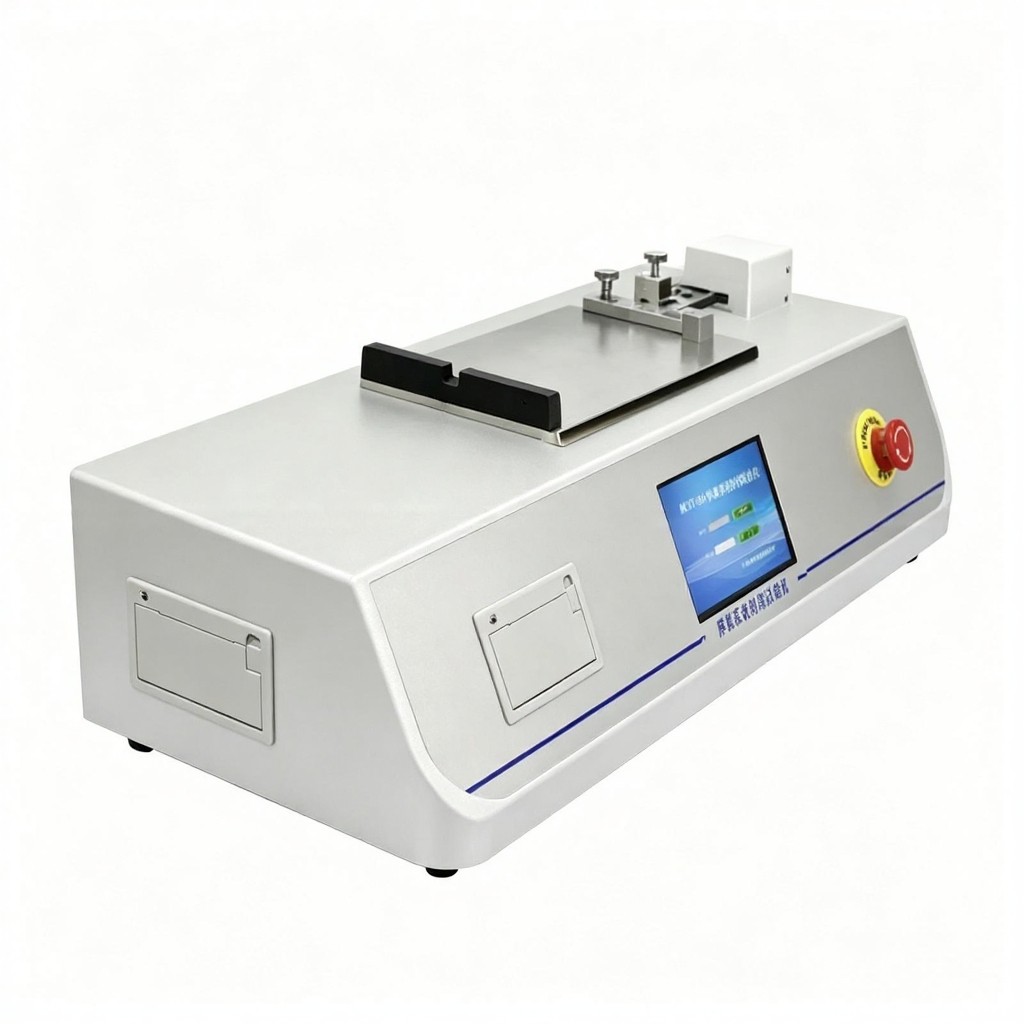

FCPT-02H COF & Peel Tester

This integrated tester combines coefficient of friction (COF) test and peel strength measurement. It is designed to determine static & dynamic friction coefficient of plastic films/sheets, paper, rubber, woven sacks, cardboard, textiles, conveyor belts, metal composite strips for optical cables, coated materials, timber, brake pads, shoe materials, windshield wipers and tires; meanwhile it tests peel resistance of adhesive composite products, medical patches, release liners and protective films.

2. Application Range

Standard Test Items

1. Static and dynamic friction coefficient: plastic films & sheets, rubber, aluminum foil, paper, paper-plastic composite film, textile, woven bag, metal composite strip and similar flexible materials.
2. Peel strength test: adhesive composite materials, medical adhesive plasters, release paper, protective films.

Optional Customized Extended Test Item

Smoothness test for cosmetics and eye drops; friction test for conveyor belts, timber, catheters, carbon rods, coated workpieces, shoe soles, wiper blades, artificial skin, metallic parts and agricultural raw materials.

3. Working Principle

Fix test specimen flat on the instrument test bench with special fixtures; place standard sliding block onto specimen surface, and connect sliding block to driving assembly. High-precision load cell and displacement sensor fitted on driving unit collect real-time force and displacement data during test to calculate friction coefficient or peel strength automatically.

4. Product Features

1. Branded load cell plus imported high-speed data acquisition chip ensures outstanding testing accuracy.
2. Ultra-high resolution: 0.001 N, accuracy better than Class 0.5.
3. Stable zero drift with empty-travel zero calibration function.
4. Precision lead-screw drive, stepless adjustable test speed, displacement accuracy up to 0.1 mm.
5. Compatible with GB, ASTM, ISO and user-defined test standards for automatic parameter setup.
6. Optional heating module: controllable temperature from ambient+5℃ to 99.9℃ for thermal environment friction testing.
7. 7-inch HD touch screen for real-time data & curve display and intuitive operation.
8. Multi-level access password management to avoid unauthorized operation.
9. Built-in mini thermal printer; supports data storage, statistics and printout.
10. Intelligent safety design: travel limit protection, overload protection and power-off data memory.
11. Optional professional PC software: data traceability, multi-level access control, audit trail and electronic signature function.

5. Technical Specifications

6. Complied Test Standards

ISO 8295, ISO 8510-2; GB 10006, GB/T 2790, GB/T 2791, GB/T 2792; ASTM D1894, ASTM D4917, ASTM D3330; TAPPI T816, TAPPI T549; GB/T 4850, GB/T 7754, GB/T 8808.

Special custom fixtures required for partial standard compliance.

7. Equipment Configuration

Standard Accessories

Main tester unit, embedded touch-screen control system, built-in thermal printer, standard 200g sliding block.

Optional Spare Parts & Upgrades

Constant-temperature heating assembly, professional PC analysis software, connecting communication cable, customized 500g sliding block, custom-range load cell.

Note: Personal computer shall be prepared by buyer separately; printer is thermal printing type
