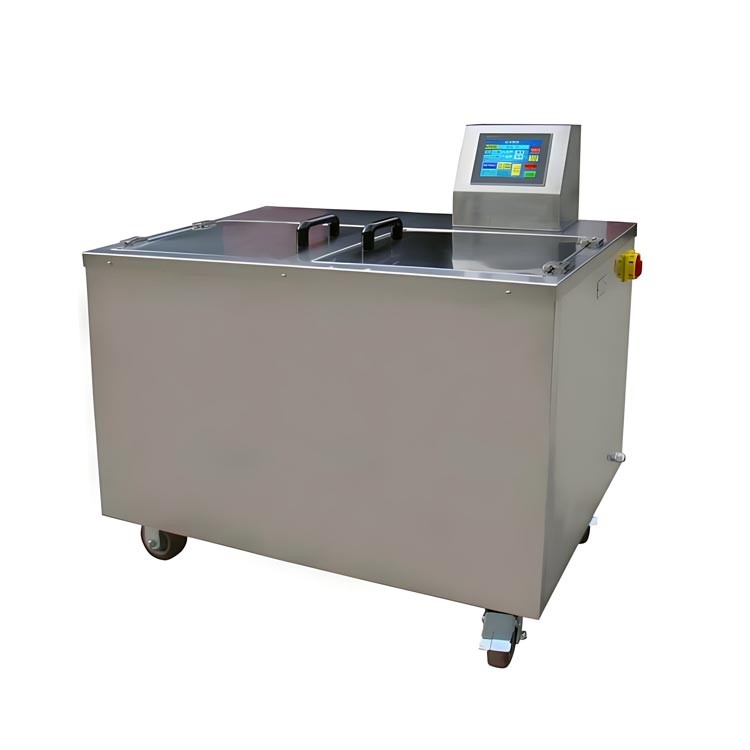

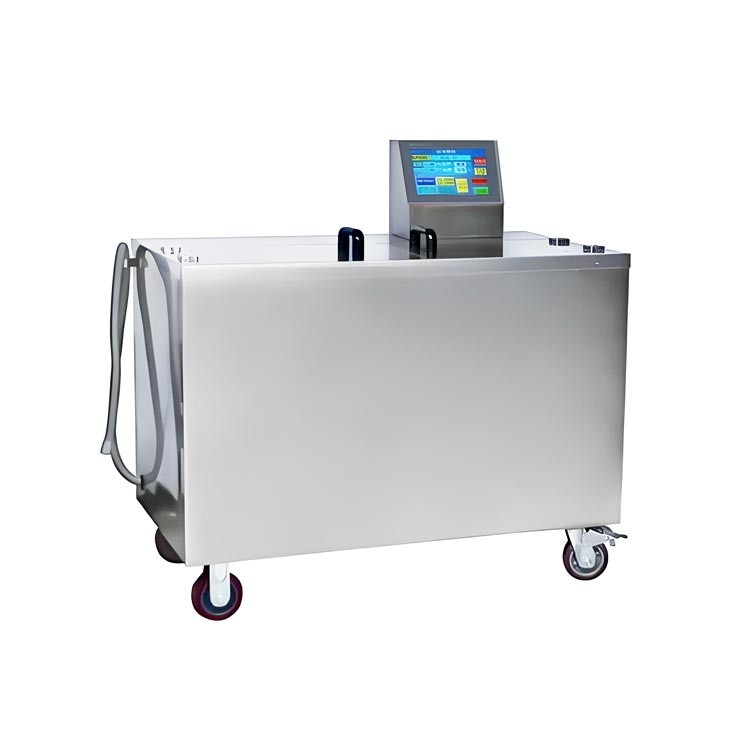

High Precision Washing Fastness Testing Machine for Textile Color Durability and Quality Assurance
  • Wooden Box
  • 5-7 days after payment received

Washing Fastness Tester fully Automatic Washing Fastness Tester color Fastness To Washing Testing Machine washing Fastness Test Equipment

Product Description

Equipment introduction

High Precision Washing Fastness Testing Machine for Textile Color Durability and Quality Assurance

For fastness test of cotton, wool, silk, hemp, chemical fiber textile washing, dry cleaning-resistant, can also be used for washing fastness test of dye.







Corresponding standard:

1, GB/T3921.1 ~ 5-1997 textile fastness test washing fastness

2, ISO 105 C01-C06: 1994 Textile Testing - washing fastness test
3, GB / T 5711-1997 | textile fastness test dry cleaning resistance fastness
4, ISO 105-D01-1993 D01 textile fastness test parts D01: dry cleaning resistance fastness
5, AATCC 61-2003 domestic and commercial washing fastness test
6, AATCC 132 dry cleaning fastness dry cleaning resistance fastness detection test
7, JIS L0844-2005 Test method for washing fastness

2, ISO 105 C01-C06: 1994 Textile Testing - washing fastness test
3, GB / T 5711-1997 | textile fastness test dry cleaning resistance fastness
4, ISO 105-D01-1993 D01 textile fastness test parts D01: dry cleaning resistance fastness
5, AATCC 61-2003 domestic and commercial washing fastness test
6, AATCC 132 dry cleaning fastness dry cleaning resistance fastness detection test

7, JIS L0844-2005 Test method for washing fastness


1, Solid state relays control the heating pipe, no mechanical contact, temperature stable, no noise, long life.

2, Adopt the gear transmission directly, a smooth and reliable test cup holder for convenience.

3, Electronic touch switch, no mechanical contacts,long life, reliability, waterproof membrane covering the panel, the water splashed on the panel will not have any impact on the circuit.

4, Computer process control temperature and time, with a proportional - integral (PID) adjustment function, an effective solution temperature "overshoot" phenomenon.

Model
ST-811-12A
ST-811-12M
ST-811-24A

Test cup size
550mL(φ75mm*120mm)meet standard of GB(ISO、JIS)etc.
1200mL(φ90mm*200mm)meet standard of AATCC etc.
Center distance of rotating frame
45mm
Rotation speed
40±2r/min
Time Control Range
99.9min
Time-control error
<±5s
Temperature control range
0~100°C
Temperature control error
<±2°C
Heating method
Heater
Stainless steel ball
φ6mm steel ball 300
Round stainless steel sheet specifications
φ30mm*3mm,20±2g(For dry cleaning resistance test)


Standard configuration
Applicable standards
GB、ISO、JIS
AATCC
GB、ISO、JIS
The number of test cup
550mL 8cups,12cups,24cups
1200mL 8cups,12cups
550mL 24cups
Work Room
one
one
two
Pre-heat chamber
one
one
two
Heating power
4.5KW、3KW per group
4.5KW、3KW per group
4.5Kw two groups
Drive power
180W one group
180W two groups
180W two groups
Stainless steel ball
300
600
900
PU seals
24 pieces(φ75mm)
24 pieces(φ75mm)
14 pieces(φ90mm)
48 pieces(φ75mm)
Apparatus placed
Socket wheel
Dimensions
935*690*910mm(L*W*H)
Power
AC380V,50Hz
Weight
170KG
Related purchasing articles
Standard light boxes, GB, ISO, AATCC, JIS and other staining gray card, color card, round stainless steel sheet  A variety of single-fiber cloth, multi-fiber Backing, standard soap flakes.
