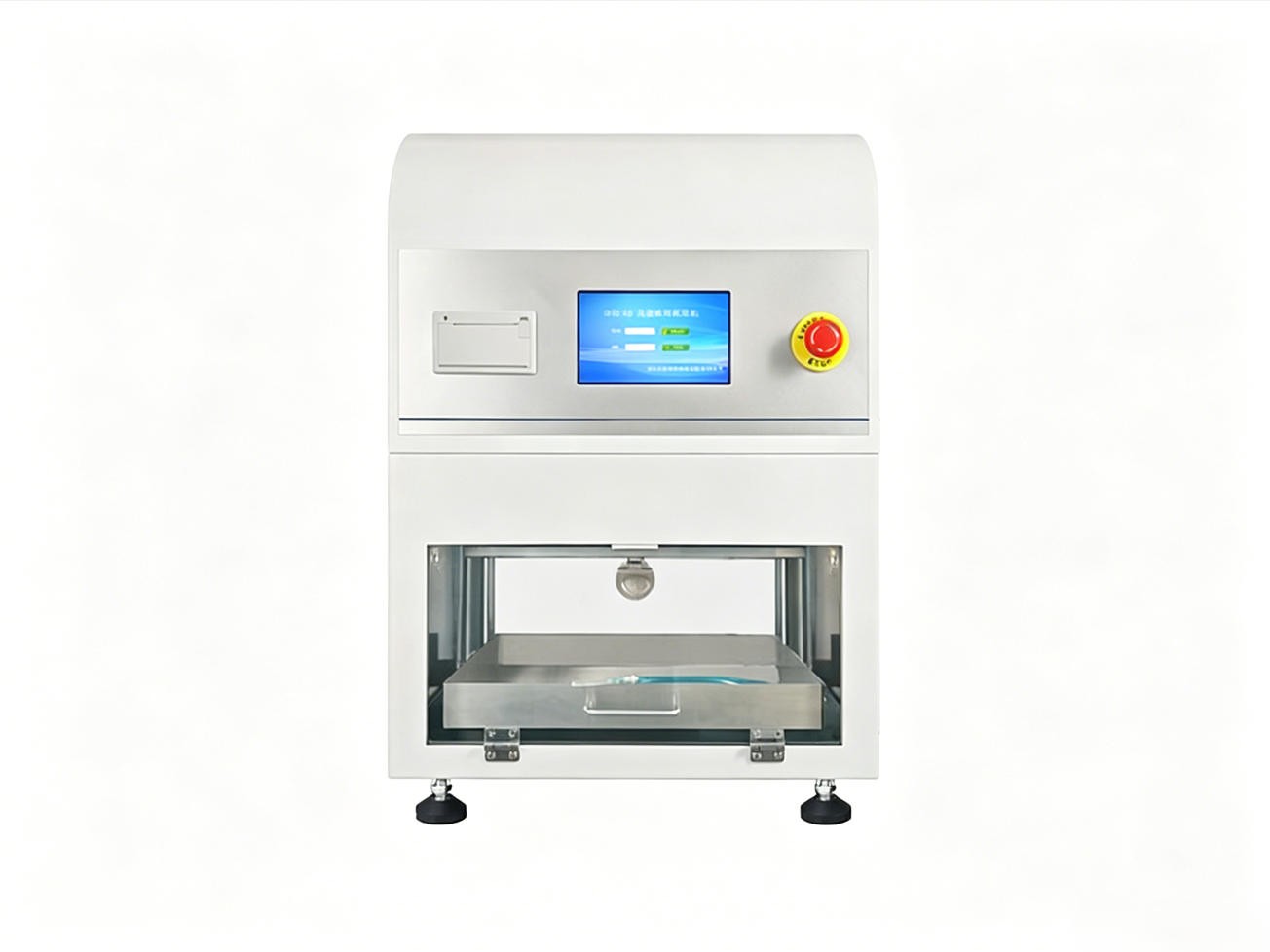

Packaging Compression Resistance Tester
- ST-03H
- ≤3000 N
- 0 ~ 600 kPa
suitable for compression resistance tests of flexible packages such as sauce pouches, food packaging bags, nitrogen-filled bags, liquid dairy pouches, infusion bags, plastic infusion bottles, blood bags, as well as impermeability and internal pressure resistance tests on rubber stopper piercing positions and burst strength tests.
Product Description
Product Introduction
The Packaging Compression Resistance Tester is a professional instrument integrating force load measurement and pneumatic pressure measurement functions, which can perform compression resistance tests via force sensors or gas pressure sensors in one machine.
It is suitable for compression resistance tests of flexible packages such as sauce pouches, food packaging bags, nitrogen-filled bags, liquid dairy pouches, infusion bags, plastic infusion bottles, blood bags, as well as impermeability and internal pressure resistance tests on rubber stopper piercing positions and burst strength tests.
It is an essential laboratory instrument for inspection institutions, research institutes, universities, food, pharmaceutical, daily chemical, medical device and hygiene product industries.
1. Application Fields
Product Introduction
The Packaging Compression Resistance Tester is a professional instrument integrating force load measurement and pneumatic pressure measurement functions, which can perform compression resistance tests via force sensors or gas pressure sensors in one machine.
It is suitable for compression resistance tests of flexible packages such as sauce pouches, food packaging bags, nitrogen-filled bags, liquid dairy pouches, infusion bags, plastic infusion bottles, blood bags, as well as impermeability and internal pressure resistance tests on rubber stopper piercing positions and burst strength tests.
It is an essential laboratory instrument for inspection institutions, research institutes, universities, food, pharmaceutical, daily chemical, medical device and hygiene product industries.
| Classification | Test Items |
|---|---|
| Basic Application | Compression resistance test, constant load compression test, internal pressure resistance test, constant internal pressure holding test |
| Extended Application | Wide range of packaging test scenarios. Customized functions can meet compression, rupture, extrusion and sealing tests for various flexible packages within the measuring range |
2. Test Principle
Clamp the specimen between upper and lower platens, and drive the two platens to move relative to each other. The machine is equipped with a dual sensing system (force sensor + pressure sensor) to collect real-time force and pressure changes during testing, so as to calculate compression resistance and other performance indicators of the specimen.
3. Product Features
- Dual test modes for internal pressure and external compression; dual-sensor integrated design delivers high-precision test results for quality inspection and research analysis of enterprises and institutions
- Multiple independent test programs to satisfy diverse test conditions
- Intelligent control system with convenient operation and practical functions including data analysis and comparison
- Supports both internal pressure method and external compression method
- Two test functions: constant pressure holding test and burst strength test
- Fully automatic testing: automatic judgment, automatic return and automatic stop
- Microcomputer control with 7-inch touch screen to display real-time test data
- Queryable historical test records with non-editable data to guarantee data authenticity
- Overload protection to secure operators and equipment
4. Technical Specifications
| Item | Parameter |
|---|---|
| Force Load Range | ≤3000 N (other measuring ranges customizable) |
| Pneumatic Pressure Range | 0 ~ 600 kPa (other measuring ranges customizable) |
| Accuracy Class | Class 1 |
| Test Stroke | 0 ~ 200 mm (customizable) |
| Test Area | 300 mm × 400 mm |
| Test Speed | 1 ~ 500 mm/min, stepless speed regulation |
| Power Supply | AC 220 V 50 Hz (standard; other voltages customizable) |
| Overall Dimensions | 550 mm (L) × 550 mm (W) × 600 mm (H) |
| Approx. Net Weight | 42 kg |
5. Applicable Standards
GB/T 16491, GB 4857.16, ASTM D642, ASTM D4169, TAPPI T804, ISO 2872, ISO 12048, JIS Z0212
Note: Custom fixtures or test procedures are required for tests complying with different standards.
6. Standard & Optional Configurations
- Standard Accessories: Main unit, mini thermal printer
- Optional Accessories: Communication cable, professional test software, custom fixtures for compression and burst tests
