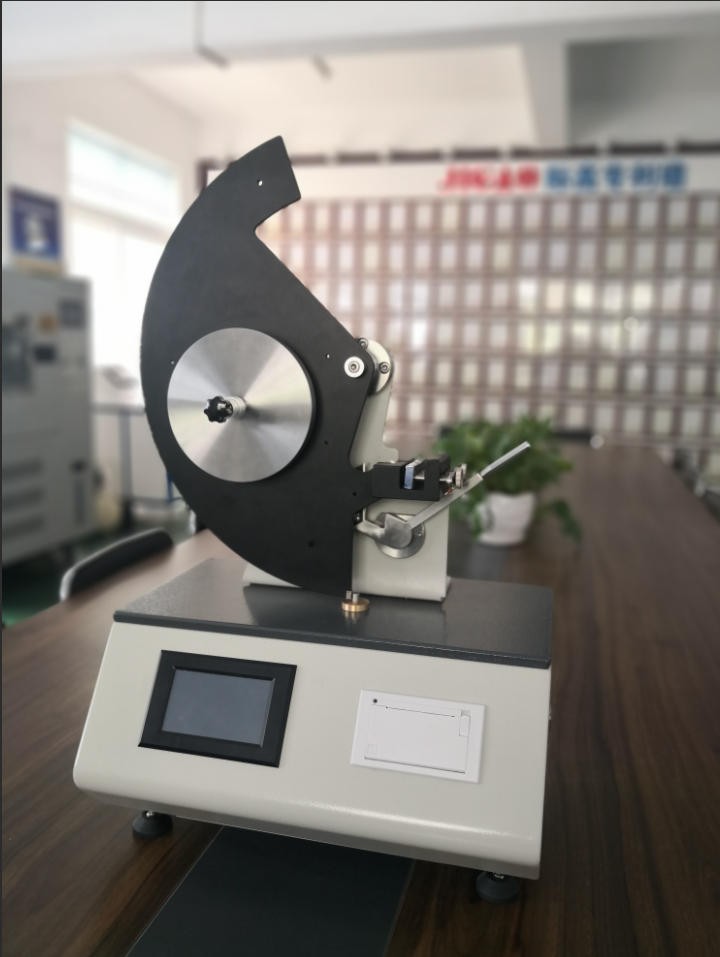

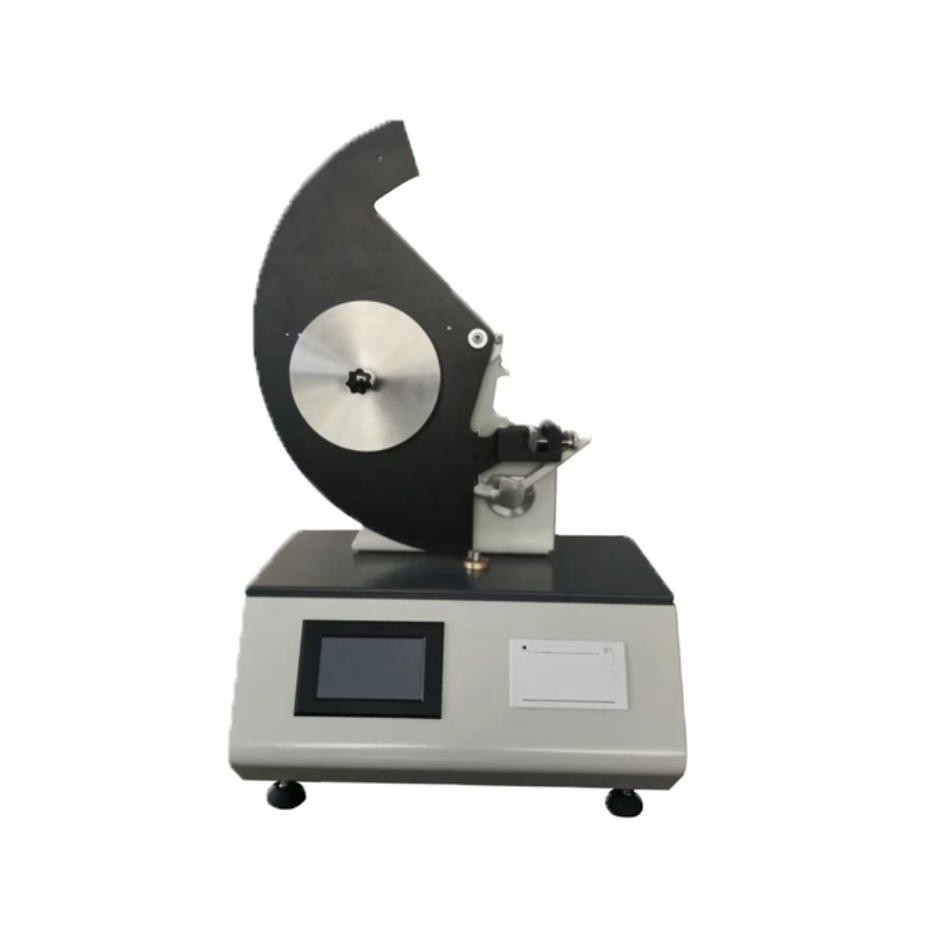

Elmendorf Tearing Tester is designed for determining the tear strength of various woven fabrics (Elmendorf method), and can also be used for determining the tear strength of thick paper, plastic sheeting, electrical tape, etc.
Product Description
Product Introduction
It is designed for determining the tear strength of various woven fabrics (Elmendorf method), and can also be used for determining the tear strength of thick paper, plastic sheeting, electrical tape, etc.
Standards
GB/T3917.1, FZ/T60006, FZ/T75001, ISO1974/9290, ASTM D1424/5734, etc.
Technical Data
|
1 |
Standard Weight Hammer (A-C) |
16N, 32N, 64N |
|
2 |
Test Accuracy |
≤±0.2% F·S |
|
3 |
Tearing Length |
43mm |
|
4 |
Notch Length |
20±0.1mm |
|
5 |
Sample Size |
100×63mm |
|
6 |
Sample Clamping |
Pneumatic Mode |
|
7 |
Working Power Supply |
AC220V 50Hz 100W |
|
8 |
Overall Dimensions |
490×430×680mm |
|
9 |
Net Weight |
30kg |
