- GM-45
- 45 degree
Gloss Meter GM-45 is gloss meter to measure 45 degree gloss. It is specially designed for plastic film, ceramic, textile and anodized alumina. It conforms to ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN6730, ENISO7668, JISZ8741, MFT30064 & TAPPIT480.
Product Description
Gloss Meter GM-45 is gloss meter to measure 45 degree gloss. It is specially designed for plastic film, ceramic, textile and anodized alumina. It conforms to ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN6730, ENISO7668, JISZ8741, MFT30064 & TAPPIT480.
Gloss Meter Features
1. GM-45 Gloss Meter conforms to below international standards ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN6730, ENISO7668, JISZ8741, MFT30064 & TAPPIT480.
2. Instrument can connection with PC software by USB cable to generate and print test report.
3. Bluetooth connection to PC software is possible to be custom made.
4. High Accuracy, durable structure, lightweight appearance, and portable size
5. Automatic calibration and simple operation
6. Fully intelligent design, fast measurement. Accurate measurement and good repeatability.
7. Storage memory 254 groups of data from instrument
8. Built in high-capacity rechargeable lithium-ion battery for long time operation
9. Backlit display for easy use in dark environments
GM-45 Gloss Meter Technical Data
|
Model |
GM-45 |
|
Display |
Blue backlight, 4-digit display, 10mm LCD |
|
Measurement Angle |
45 |
|
Measurement Range |
0.1GU ~ 200GU |
|
Gloss Unit |
GU |
|
Accuracy |
±1.0 |
|
Display Resolution |
0.1GU |
|
Accuracy |
±0.5 GU |
|
Measurement Area |
7mm x 14 mm (elliptic) |
|
Storage Memory |
254 Groups |
|
Working Environment |
Temperature 0ºC ~ 40°C |
|
Humidity < 85% RH |
|
|
Power |
3.7 V Lithium Battery |
|
Size |
140mm x 45mm x 75 mm |
|
Weight |
305 g (including battery) |
|

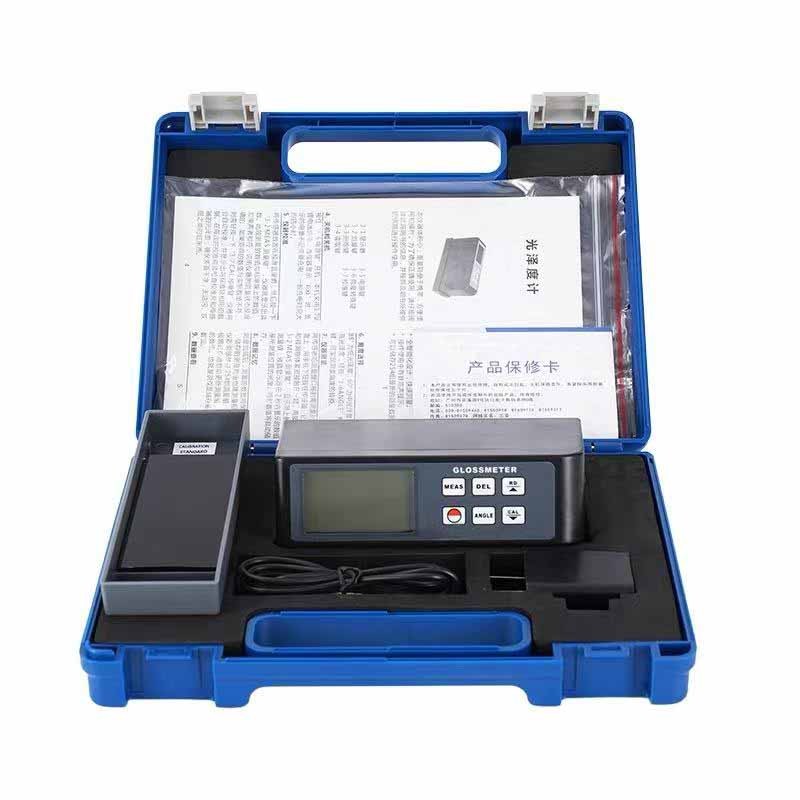

Standard Accessory |
Haze and Gloss Meter |
1 Unit |
|
Cleaning Cloth |
1 Pcs |
|
|
Power Adapter |
1 Pcs |
|
|
Carrying Case |
1 Unit |
|
|
Operate Manual |
1 Unit |
