TheST-A1260 Microscopic Residue Carbon Analyzer is a specialized testing instrument, mainly used for determining the residue carbon content of petroleum products. It is applied in sectors such as petrochemicals, power, railways, and research.
Product Description
Introduction

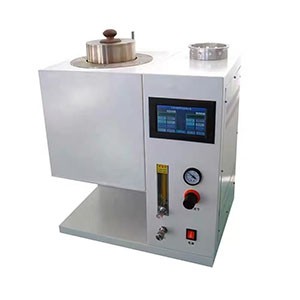

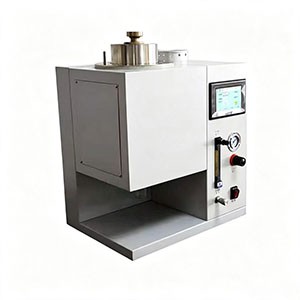

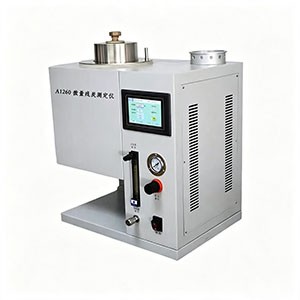

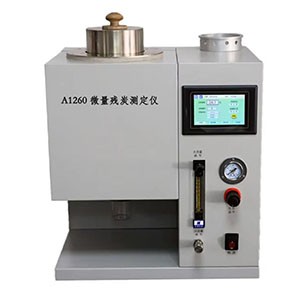

The ST-A1260 Microscopic Residue Carbon Analyzer is a specialized testing instrument, mainly used for determining the residue carbon content of petroleum products. It is applied in sectors such as petrochemicals, power, railways, and research.
Adaptation standards
GB/T 17144,ASTM D4530
Instrument features
1. 5.6-inch color touchscreen display, with clear images and easy operation.
2. Automatic control of heating, flow rate, and purging, with real-time display of the experimental process.
3. Embedded operating system, stable and reliable operation.
4. High greenhouse design is reasonable, with stable and safe temperature control, and has safety protection functions.
5. Editable input of sample tubes and sample weights.
6. Automatically calculates the residual carbon value based on the operation.
7. Stores 1000 sets of historical data, convenient for querying.
8. Historical data can be queried according to the date.
Technical Data
Applicable Standard
ASTM D4530
Temperature Control Point
500℃
Temperature‑sensing Element
K‑type thermocouple
Temperature Control Accuracy
±2℃
Heating Power
1500 W
Working Pressure
0.15 MPa
Pressure Reducing Valve
Input: 0.15 ~ 0.7 MPa;
Output: 0.14 MPa
Air Source Pressure
Primary pressure ≥2 MPa, Secondary pressure ≤0.5 MPa
Flow Rate Range
100 ml ~
1000 ml/min (adjustable)
Nitrogen Flow Rate
150 mL/min
and 600 mL/min (auto‑switching)
Heating‑up Rate
10 ~ 15℃/min
Sample Quantity
1 ~ 12 pcs
Power Supply
220V±10%, 50Hz
Ambient Temperature
5℃ ~ 45℃
Relative Humidity
10% ~ 80%RH
Total Machine Power
1600 W
Overall Dimension
382×408×575 mm
