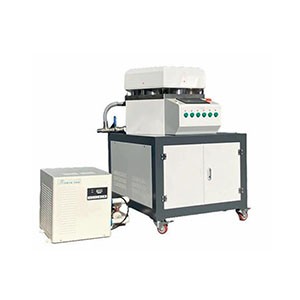

Product Description

Abrasion tester is mainly for determination ultra-high molecular weight polyethylene (PE-UHMW) and PE-HD abrasion performance. It is an necessary testing machine for resin products manufacturers factory inspection, downstream processing enterprises entrance inspection and product comparison.

It is controlled by the microcomputer, the real-time rate of rotation and temperature can be accurately displayed on the panel, at the same time may do the countdown setting on the panel, this control way ensures accurate values, high precision and no hysteresis phenomenon.

Features

1.Same rate of rotation for all 6 stations

The instrument is set up with 6 test stations, it can be done at the same time on 6 specimens, each station is connected with the synchronous belt, and the spindle motor speed without deviation to ensure the consistency of its rate of rotation, which greatly improves the comparability of the results.

2.Automatic lifting system, high test efficiency and good safety

3.Immersed abrasion test cup design

4.Separate cooling system

5.Rotating specimen disk, external suspension stirring design

6.Automatic test, real-time monitoring test parameters

7.Display panel may set the test time (countdown mode, the system defaults 3 hours), the timing device is automatically activated when test starts, the display panel can show the current slurry temperature and specimen rotation, simplifying the operating steps and work intensity.

Technical Data
