Product Description

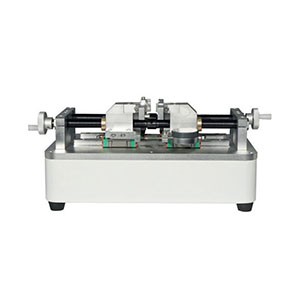

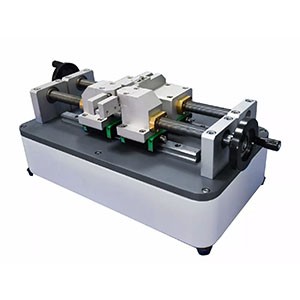

This tester is used to make double-notches on the ultra-high molecular weight polyethylene (PE-UHMW) molding material specimen, using it along with 50J pipe charpy impact tester for the determination of double-notched charpy impact strength of PE-UHMW molded materials. It is also applicable for notch preparation of FNCT and PENT specimens.

Features

1. May accomplish the preparation of two sides of the coplanar notch in one time.

2. The unique structure design makes the notches and specimen centerline strictly coincident.

3. The electronic micrometer is used for measuring the notching depth, largely guarantees the accuracy and consistency of both remaining width of the specimen.

4. Double knives cutting & double knives synchronization: in the notching process, the cutting force on both sides of the specimen is same, and the deformation at radial direction is invisibly.

5. The knife blade is only subject to axial force without any lateral force, which largely increase the knife lifetime.

Standards

GB/T18743.2-2022, ISO 9854, ISO16770-2004, ASTM F 1473

Technical Data
