- ST-DAP2S
- 589nm
- LED + interference filter
- ±45°（optical rotation）
- ≤0.01°
The digital automatic polarimeter is a high‑precision optical analytical instrument for measuring the optical rotation of optically‑active substances. It automatically detects the rotation angle of polarized light passing through samples, and calculates specific rotation, concentration, purity and sugar content according to built‑in formulas. Widely applied in pharmaceutical, sugar, food, chemical
Product Description

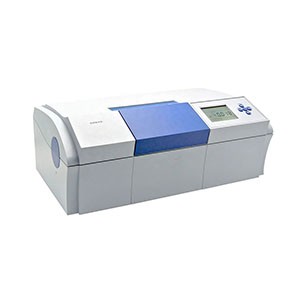

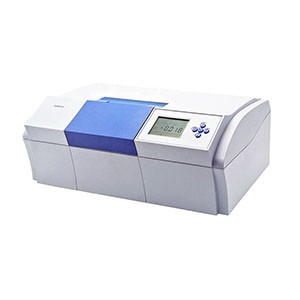

The digital automatic polarimeter is a high‑precision optical analytical instrument for measuring the optical rotation of optically‑active substances. It automatically detects the rotation angle of polarized light passing through samples, and calculates specific rotation, concentration, purity and sugar content according to built‑in formulas. Widely applied in pharmaceutical, sugar, food, chemical and fine‑chemical industries for quality inspection, component quantification and raw‑material purity verification. It features automatic measurement, fast response, digital readout and high repeatability, reducing manual operation errors.
Product Features
1. Photoelectric test and microcomputercontrol;
2. Measuring optical rotation and sugar degree(ZHIYI-DAP2S);
3. Storage of three times results;
4. Calculation of average values;
5. Dark-colored sample can also be measured.
Technical Data
Parameters/Model
ST-DAP2S
ST-DAP2B
Measurement
modes
Optical
rotation, sugar degree
Optical
rotation
Wavelength
589nm
Light
Source
LED
+ interference filter
Measurement
range
±45°（optical
rotation）
±120°Z（sugar）
±45°（optical
rotation）
Accuracy
±(0.01+measuring
value ×0.05%)°（optical rotation）
±(0.03+measuring
value ×0.05%)°Z（sugar）
±(0.01+measuring
value ×0.05%)°（optical rotation）
Minimum
indicating value
0.001°（optical
rotation）
0.01°Z（sugar）
0.002°（optical
rotation）
Repeatability
≤0.002°
≤0.01°
sample
transmittance
1%
10%
Display
5-inch
LCD
Test
Tube
100mm/200mm
(regular)
Interface
RS232
Weight
(Gross)
36kg
Overall
Dimensions
730mm×480mm×470mm
