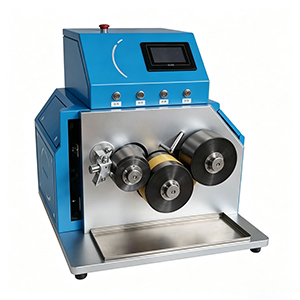

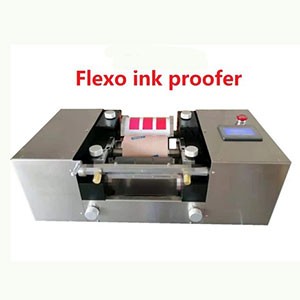

- ST-P225F
The flexo ink proof machine ST-P225F is suitable for single-color proofing, such as color matching, ink performance testing and other laboratory tests. It is capable for coating application, solid color block proofing and dot pattern proofing.
Product Description
Product Introduction
The flexo ink proof machine ST-P225F is suitable for single-color proofing, such as color matching, ink performance testing and other laboratory tests. It is capable for coating application, solid color block proofing and dot pattern proofing.
Compatible Inks
Water-based flexographic ink, UV flexographic ink, offset ink, conventional & UV letterpress ink
Acceptable Proofing Materials
Paper, plastic film, non-woven fabric, tissue paper, gold/silver cardboard and other flexible substrates
Product Features
1. The ceramic anilox roller rotates first for even ink distribution, then the printing substrate roller and plate roller synchronously rotate one full cycle to finish proofing. Synchronized operation of ceramic roller, substrate roller and plate roller ensures stable and consistent proofing quality.
2. Four independent components including doctor blade, ceramic anilox roller, plate roller and substrate roller support separate left/right pressure adjustment, featuring highly flexible parameter setting.
3. Easy disassembly and assembly for anilox roller and doctor blade for quick replacement and maintenance.
4. Large-diameter roller design enables convenient loading of printing substrates, plate mounting and plate cleaning operations.
Technical Data
|
Input Power Supply |
220V, 50/60Hz |
|
Rated Power |
500W |
|
Applicable Scope |
Single-color proofing (e.g., color matching, ink performance testing) |
|
Ink Feeding Method |
Dropper dripping ink |
|
Proofing Substrate Thickness |
0.01–2mm (flexible bendable materials) |
|
Max. Proofing Substrate Size |
170×210mm |
|
Effective Printing Area |
120×150mm |
|
Plate Size |
150×160mm |
|
Plate Thickness |
American standard flexo plate thickness |
|
Pressure Adjustment (Plate Roller & Anilox Roller) |
Adjustable within ±2mm, with graduated scale for pressure display |
|
Pressure Adjustment (Plate Roller & Impression Roller) |
Adjustable within ±2mm, with graduated scale for pressure display |
|
Adjustable Printing Speed |
10–80 m/min |
|
Ceramic Anilox Roller Dimension |
φ70×200mm |
|
Ceramic Anilox Roller Line Screen |
Standard: 600LPI; Customizable: 70LPI–1200LPI |
|
Compatible Inks |
Water-based flexographic ink, UV flexographic ink, offset ink, conventional & UV letterpress ink |
|
Acceptable Proofing Materials |
Paper, plastic film, non-woven fabric, tissue paper, gold/silver cardboard and other flexible substrates |
|
Overall Dimension (L×W×H) |
450×810×250mm |
|
Net Weight |
130KG |
|
Optional Accessory |
UV curing unit |
|
Supported Proofing Types |
Coating application, solid color block proofing, dot pattern proofing |
