- STP-210
- 0.5kw
- 220V or custom made
- 110mm
- 0 260 m/min

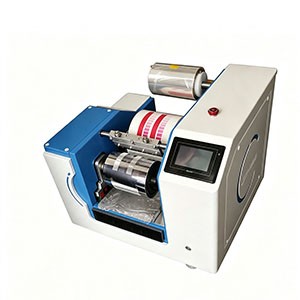

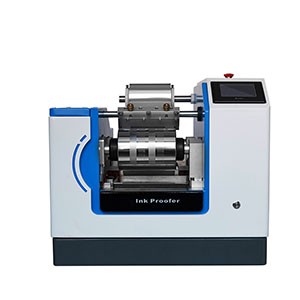

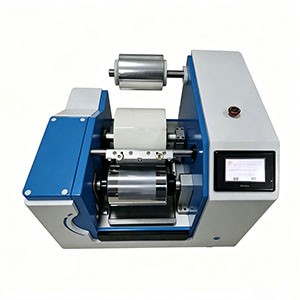

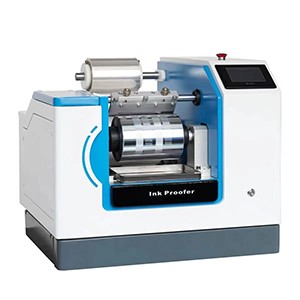

This equipment adopts centralized PLC control system, and is equipped with high-precision servo motors for printing operation. The whole system features simple structure, high reliability and easy operation. Users can adjust parameters in real time according to actual printing requirements to achieve precise printing control. The maximum printing speed can reach 260 meters per minute.
Product Description
Product Introduction
This equipment adopts centralized PLC control system, and is equipped with high-precision servo motors for printing operation. The whole system features simple structure, high reliability and easy operation. Users can adjust parameters in real time according to actual printing requirements to achieve precise printing control. The maximum printing speed can reach 260 meters per minute.
Operation Instructions
The standard printing operation procedure is as follows: Power on the device → Install the printing cylinder → Load the film → Set operating parameters → Compress the rubber roller and scraper → Fill ink → Start printing → Stop printing and release the scraper and rubber roller → Clean the printing cylinder.
Ink Proofer Technical Data
|
Model |
STP-210 |
|
Main Power‑supply Voltage |
220V |
|
Control Voltage |
24V |
|
Rated Power |
0.5 kW |
|
Maximum Printing Width |
110 mm |
|
Printing Speed Range |
0‑260 m/min |
