- ST-WS800
- 800L-2000L
- IPX3, IPX4, IPX5, IPX6
- RT to 50℃

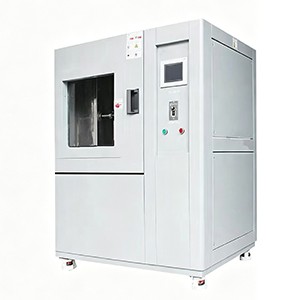

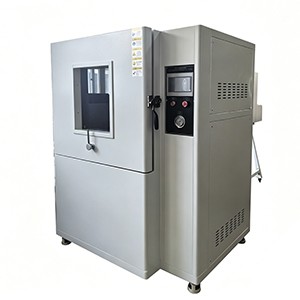

IPX3-6 Water Spray and Splash Test Chamber simulates rainfall environments of different intensities to evaluate the waterproof performance of products. It complies with standards including GB/T 4208 and IEC 60529, and supports four waterproof grade tests: IPX3 (sprinkling water), IPX4 (splashing water), IPX5 (water jet) and IPX6 (powerful water jet).
Product Description
The IPX3-6 Water Spray and Splash Test Chamber simulate rainfall environments of different intensities to evaluate the waterproof performance of products. It complies with standards including GB/T 4208 and IEC 60529, and supports four waterproof grade tests: IPX3 (sprinkling water), IPX4 (splashing water), IPX5 (water jet) and IPX6 (powerful water jet).
Key Configuration & Functions
Water Supply System
Equipped with high-pressure water pump, pressure stabilizer and flowmeter to guarantee stable water pressure and flow rate. Some models are equipped with water tank heating and water circulation functions.
Control System
Controlled by PLC touch screen. Operators can set parameters including pressure, test duration and rotation speed. Real-time test status is displayed, and parameter storage and recall are available.
Safety Protection
Built-in water shortage protection to avoid pump idling, overload protection and over-temperature protection. Certain models come with door interlock, which will pause the test immediately once the door is opened.
Structural Design
The inner chamber is made of 304 stainless steel for corrosion resistance. The bottom is designed with drainage slope and water collecting tank for convenient water discharge and recovery.
Application
It is widely used for waterproof testing of electronic and electrical products such as lamps and household appliances, auto parts including sensors and connectors, as well as outdoor equipment like communication base stations and photovoltaic modules, to guarantee stable operation under rainy conditions.
Technical Data
|
Test Grade |
IPX3, IPX4, IPX5, IPX6. Switchable by replacing nozzles and adjusting parameters |
|
Inner Chamber Size |
Standard volume: 800L ~ 2000L Example dimension: W800×D800×H1000mm. Custom sizes are acceptable |
|
Water Temperature |
Ambient temperature ~ 50℃ (Tolerance: ±2℃); up to 80℃ for optional models |
|
Water Pressure |
IPX3/IPX4: 0.07~0.15MPa IPX5: 30~100kPa IPX6: 100~150kPa |
|
Water Flow Rate |
IPX3/IPX4: 10±5L/min (Total flow) IPX5: 12.5±0.625L/min (Single nozzle) IPX6: 100±5L/min (Single nozzle) |
|
Nozzle Type |

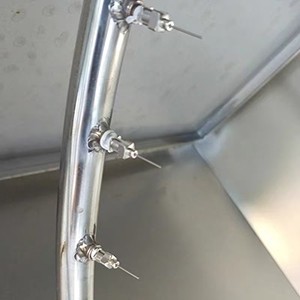

IPX3/IPX4: 120° fan nozzles with 100mm spacing IPX5: Φ6.3mm round nozzle IPX6: Φ12.5mm round nozzle |
|
Sample Holder |

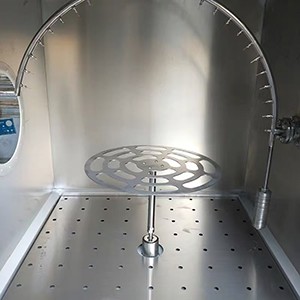

360° rotation, adjustable speed: 1~5r/min; height adjustable for different test pieces |
|
Test Duration |
0~9999 minutes (programmable) Default setting: 5min for IPX3/IPX4, 3min for IPX5/IPX6 |
