Product Description

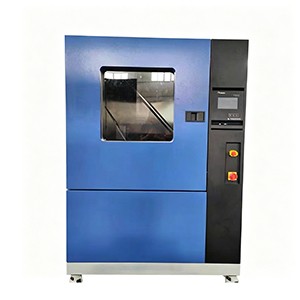

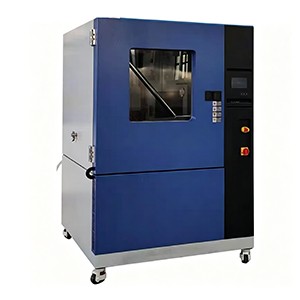

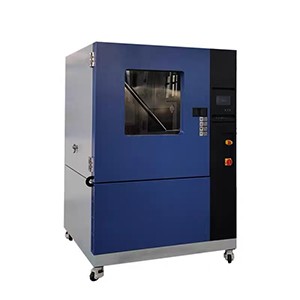

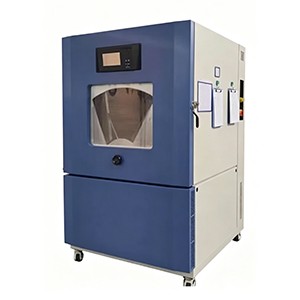

The sand and dust test chamber is suitable for testing electrical and electronic products, automotive and motorcycle components, and seals to prevent sand and dust from entering the seals and shells in a sand and dust environment. To test the performance of electronic and electrical products, automotive and motorcycle components, and seals in the use, storage, and transportation of sand and dust environments. This device is suitable for IP protection level: IP5X and IP6X.

Working Principle

The sand and dust test chamber is driven by a fan to blow a certain concentration of sand and dust at a certain flow rate over the surface of the test samples, in order to evaluate the ability of these test samples (equipment) to resist the penetration effect of dust particles, the ability to resist the corrosion or blockage effect of gravel, and the ability to store and operate when exposed to dry sand or dusty atmosphere.

Product Features

The outer shell of the device is made of cold-rolled steel plate with electrostatic spraying, and the inner liner is made of high-quality stainless steel plate, with an overall beautiful and generous appearance. There is a large observation window and manual wiper device in the middle of the box door, which can easily see the test condition of the specimen clearly during the test process.
2. The main control instrument of this device adopts an intelligent digital temperature controller, with a user-friendly design operation method that is easy to learn and use, and the operation of instruments of different functional levels is compatible with each other. The input adopts a digital calibration system, with built-in commonly used thermocouple and thermistor nonlinear calibration tables, ensuring accurate and stable measurement.
3. Equipped with positional adjustment and AI artificial intelligence adjustment functions, with a precision of 0.2 level and multiple alarm modes.
4. The device has a timing function.
5. The equipment is heated using stainless steel finned heating tubes.
6. The dust blowing cycle and vibration cycle of the entire device can be adjusted, and it is equipped with a timer for overall testing.

Standards

GB 7000.1 — Luminaires – General requirements and tests

GB/T 2423.37 — Environmental testing for electric and electronic products – Part 2: Test methods – Test L: Dust and sand

GB/T 4208 — Degrees of protection provided by enclosures (IP Code)

GB/T 10485 — Road vehicles – External lighting and light-signalling devices – Environmental durability

IEC 60598-1 — Luminaires – Part 1: General requirements and tests

IEC 60068-2-68 — Environmental testing – Part 2-68: Tests – Test L: Dust and sand

IEC 60529 — Degrees of protection provided by enclosures (IP Code)

GJB 150.12A — Laboratory environmental test methods for military materiel: Dust test

Technical Data
