- ST-XC150
- Irradiation, irradiance control, water spray, condensation, temperature & humidity control
- Xenon
- 150L,1837L or custom made

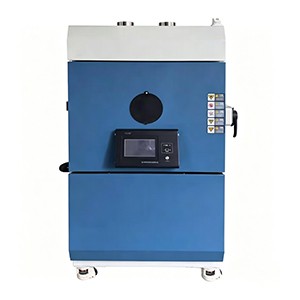

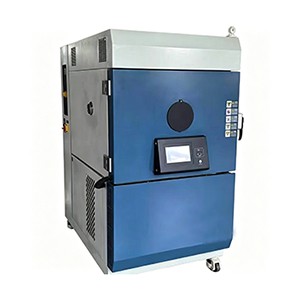

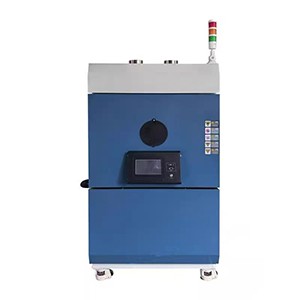

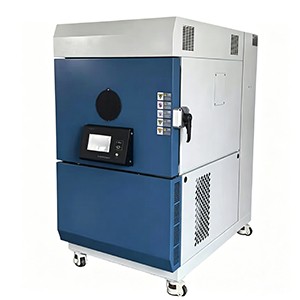

Xenon Arc Aging Test Chamber is a test device that uses a long arc xenon lamp as a light source to simulate and enhance the accelerated aging resistance of sunlight and humidity, in order to quickly obtain test results close to atmospheric aging. It is used to evaluate the weather resistance of materials such as automotive components, plastic rubber, paint coatings, textile printing and dyeing.
Product Description
Xenon Arc Aging Test Chamber is a test device that uses a long arc xenon lamp as a light source to simulate and enhance the accelerated aging resistance of sunlight and humidity, in order to quickly obtain test results close to atmospheric aging. It is used to evaluate the weather resistance of materials such as automotive components, plastic rubber, paint coatings, textile printing and dyeing.
Standards
IS016474-2; IS04892-2; IS011341; SAEJ2412; SAEJ2527;
ASTM D529-04; ASTMD2565; ASTMD4459; ASTMG155
Technical Data
|
Item |
ST-XT150 (Top Air-Cooled Lamp Tube) |
ST-XT1000 (Rotary Water-Cooled Lamp Tube) |
|
Working Chamber Dimension (W×H×D, mm) |
500×600×500 |
1000×1000×1000 |
|
External Cabinet Dimension (W×H×D, mm) |
1050×1750×1000 |
1500×2150×1500 |
|
Power Supply |
380V/50HZ/6KW |
380V/50HZ/12KW |
|
Light Source |
Full spectrum, or customized spectrum per test requirements |
|
|
Lamp Tube |
Power: Air-cooled 1.8KW; Water-cooled 6KW Installation: Air-cooled lamp mounted on top; Water-cooled lamp mounted at cabinet center |
|
|
Irradiance Intensity |
340nm irradiance: 0.35~0.76w/m²·s 365nm irradiance: 30~50w/m²·s (multi-spectrum) 420nm irradiance: 0.35~1.2w/m²·s Illuminance: 300~800nm, 300~1100w/m² (full spectrum all waveband irradiance) |
|
|
Filter Glass |
1. Quartz glass: High light transmittance, ≥95% spectrum penetration, for full spectrum testing 2. Borosilicate glass: Transmits 300~400nm wavelength, mainly for UV aging test 3. Coated infrared glass: Filters infrared & blue light above 400nm to avoid sample overheating 4. Window glass: Simulates indoor light exposure for products} |
|
|
Functions |
Irradiation, irradiance control, water spray, condensation, temperature & humidity control |
|
