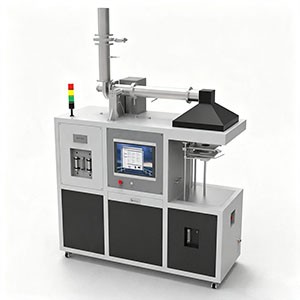

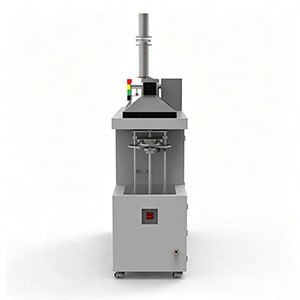

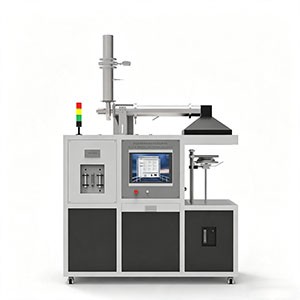

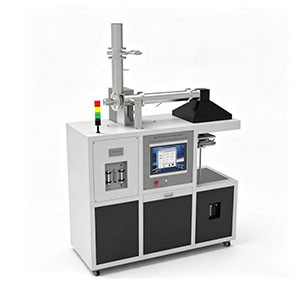

ISO 5660-1 & ASTM E1354 Cone Calorimeter

ISO 5660-1 & ASTM E1354 Cone Calorimeter

Model: ST-X11
Heater Power: 5kw
Specimen Size: 100 mm × 100 mm × (max 50 mm)
Timing Resolution: 1s
Measuring Range: 0–25% VOL

The cone calorimeter is the optimal test instrument for characterizing material combustion performance. Its test environment simulates real fire combustion conditions of materials, and the acquired test data can accurately evaluate the combustion behavior of materials under fire scenarios.

Product Description

Application

Compliant Standards

ISO 5660, ASTM E1354, GB/T 16172

Product Advantages

The cone calorimeter outputs comprehensive test data as listed below:

1. Total combustion duration (s)

2. Heat Release Rate per unit area (kW/m²); average & peak HRR within 180 s / 300 s after ignition

3. Total Heat Release of specimen (MJ/m²)

4. Initial mass & residual mass of specimen (kg)

5. Average mass loss & average Mass Loss Rate (g/(m²·s)) from ignition to test completion

6. Irradiance (kW/m²) & exhaust flow rate (m³/s)

7. HRR-Time curve

8. CO & CO₂ generation rates

9. High-voltage spark igniter with automatic positioning

10. Modular equipment design; users can select standard or optional modules according to actual application requirements

Application Fields

1 Evaluation of Material Fire Hazard

Combining HRR, peak HRR (pkHRR) and Time To Ignition (TTI), the fire hazard of materials can be quantitatively judged. Higher HRR & pkHRR and shorter TTI indicate greater potential fire risk of the material, and vice versa.

2 Analysis of Flame Retardant Mechanisms

Parameters including EHC, HRR and Specific Extinction Area (SEA) can be used to analyze gas-phase and condensed-phase flame retardancy during material pyrolysis:

Decreased HRR represents improved flame retardancy, which is also verified by lower EHC and higher SEA. Incomplete gas-phase combustion proves the flame retardant functions in gas phase.
If EHC remains stable while average HRR drops, the Mass Loss Rate (MLR) decreases, indicating condensed-phase flame retardant mechanism.

3 Fire Modelling Research

The cone calorimeter was originally developed for fire modelling design. It measures HRR, the most critical parameter representing fire hazard. Meanwhile, auxiliary indicators such as toxic gas yield and smoke generation can be obtained simultaneously for fire simulation research.

Technical Data

Control System	PLC + Windows Platform
Operation Display	19‑inch Capacitive Industrial Touch All‑in‑One PC
Cone Heater Power	5 kW
Weighing System	Range: 2 kg, Accuracy: 0.01 g; custom‑made measuring range and precision are available on request
Specimen Size	100 mm × 100 mm × (maximum 50 mm)
Exhaust Flow Rate	(0.024 ± 0.002) m³/s
Timing Resolution	1 s
Oxygen Sensor Type	Paramagnetic Oxygen Sensor
Oxygen Measuring Range	0–25% VOL
Oxygen Resolution	0.01% VOL
Oxygen‑Sensor Accuracy	≤ ±1% F.S.
Oxygen‑Sensor Linear Error	≤ ±1%
Oxygen‑Sensor T90 Response Time	≤ 20 s
Oxygen‑Sensor Zero Drift	≤ ±1% F.S.
Oxygen‑Sensor Repeatability	≤ ±1%
Oxygen‑Sensor Recovery Time	≤ 20 s
Smoke Density Analysis Unit	Fitted with concave‑convex lens, light‑source assembly and 50% optical filter
Gas‑Sensor Type	Infrared Gas Sensors
CO₂ Sensor	Range: 0–10% VOL; Resolution: 0.01% VOL; Accuracy ≤ ±1% F.S.; Linear Error ≤ ±1%; T90 ≤ 20 s; Zero Drift ≤ ±1% F.S.; Repeatability ≤ ±1%
CO Sensor	Range: 0–1% VOL; Resolution: 0.01% VOL; Accuracy ≤ ±1% F.S.; Linear Error ≤ ±1%; T90 ≤ 20 s; Zero Drift ≤ ±1% F.S.; Repeatability ≤ ±1%
Heat Flux Meter	0–100 kW/m² (Water‑cooled Type)
Ignition System	1‑set Fully‑Automatic Ignition System
Flame Monitoring	1‑set Flame Detector
Operating Software	One set of self‑developed dedicated test software
Extra Function	Specimen ignition‑surface temperature detection
Power Supply	AC 380V, 50 Hz, 100 A
