- ST-3012

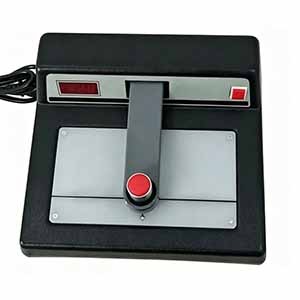

ST-3012 Transmission densitometer has a series of advantages such as accurate reading, good stability and convenient operation. It can be widely used in nondestructive testing, photosensitive materials, film, printing, medical treatment and other industries. Every instrument has passed the factory inspection of the standard densitometer provided by the Chinese Academy of metrology. Every instrumen
Product Description
ST-3012 Transmission densitometer has a series of advantages such as accurate reading, good stability and convenient operation. It can be widely used in nondestructive testing, photosensitive materials, film, printing, medical treatment and other industries. Every instrument has passed the factory inspection of the standard densitometer provided by the Chinese Academy of metrology. Every instrument is equipped with a standard densitometer to verify the accuracy of the instrument.
Its design and technical standard specifications comply with the provisions of GB / T 11500-2008 / ISO 5-2:2001 (photographic density measurement part II geometric conditions of transmission density), GB / T11501-2008 / ISO 5-3:1995 (photographic density measurement part III spectral conditions) and ASTM E 1079-05. It is an optical density testing instrument in accordance with ISO and ASTM standard. Each instrument can be equipped with a calibration density film, and its value can be derived from the National Visual diffuse transmission density standard.
Technical Data
|
No |
Parameter |
Value |
|
1 |
Density range |
D = 0.00 ~ 6.0D |
|
2 |
Aperture size |
Φ 2.0mm |
|
5 |
Reading stability |
± 0.02 |
|
6 |
Inaccuracy |
0.03d |
|
7 |
Medium thickness |
0-10mm |
|
8 |
Weight |
2kg |
|
9 |
Display mode |
three-digit display |
|
10 |
Sampling time |
0.05s |
|
11 |
Working environment |
temperature 0-40 ℃, relative humidity ≤ 85% |
|
12 |
Power supply |
50-60Hz 220V ± 10% |
|
13 |
Power |
About 25W |
|
14 |
Size |
300 × 270 × 140mm （L ×W × H) |
Packing List
|
NO. |
Product Name |
Quantity |
|
1 |
Densitometer |
1 |
|
2 |
Instruction Manual |
1 |
|
3 |
Calibration certificate |
1 |
|
4 |
OD Standard Film |
1 |
|
5 |
Power Adapter |
1 |
|
6 |
Air Blower |
1 |
|
7 |
Carrying Case |
1 |
