- ST-RTC225
- -40/-70 to +100℃
- 1-25 ℃/min
- 225L,408L,512L,800L,1000L

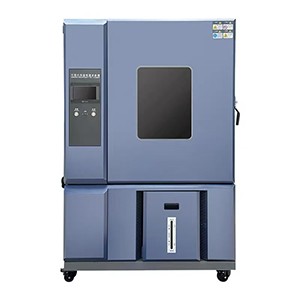

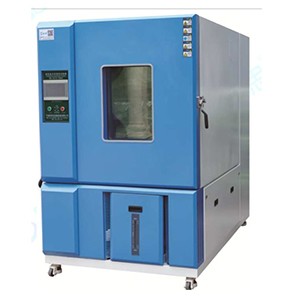

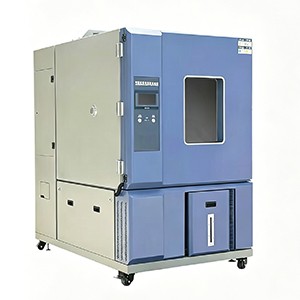

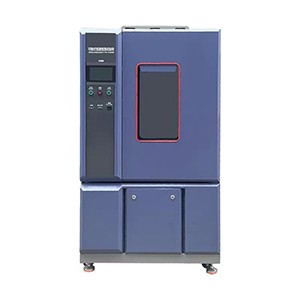

Rapid Temperature Changed Environmental Test Chambers is a device used to test the performance of materials in various environments and to test the heat resistance, cold resistance, dry resistance, and moisture resistance of various materials. Suitable for quality testing of electronic, electrical, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, med
Product Description
The Rapid Temperature Change High and Low Temperature Humidity Test Chamber is used to test the heat resistance, cold resistance, dryness resistance, and humidity resistance of various materials. Suitable for use in electronics, electrical appliances, automotive, metal, chemical, and building materials factories.
The Balanced Temperature and Humidity
Control System (BTHC) uses P.I.D. to control the SSR, ensuring that the
system's heating and humidification capacity equals the heat and humidity loss,
thus enabling long-term stable use.
Standards
GB/T2423.1 - Low Temperature Test Method;
IDT IEC60068-2-1
GB/T2423.2 - High Temperature Test Method;
IDT IEC60068-2-2
GB/T2423.3 - Constant Damp Heat Test
Method; IDT IEC60068-2-78
GB/T2423.4 - Alternating Damp Heat Test
Method; IDT IEC60068-2-30
GB/T2423.22 - Test N: Temperature
Variation; IDT IEC60068-2-14
GB/T2423.34 - Temperature/Humidity Combined
Cyclic Test Method; IDT IEC60068-2-38
GB/T28046.4 - Environmental Conditions and
Tests for Electrical and Electronic Equipment of Road Vehicles: Climatic Loads;
MOD ISO16750-4 GB/T2423.50 - Test Cy: Constant damp heat, mainly used for
accelerated testing of components; IDT IEC60068-2-67
GJB150.3A - Military Equipment Laboratory
Environmental Test Methods: High Temperature Test;
GJB150.4A - Military Equipment Laboratory
Environmental Test Methods: Low Temperature Test;
GJB150.9A - Military Equipment Laboratory
Environmental Test Methods: Damp Heat Test
GB/T11158 - Technical Conditions for High
Temperature Test Chamber; GB/T10592 -Technical Conditions for High and Low
Temperature Test Chambers;
GB/T10589 - Technical Conditions for Low Temperature Test Chambers; GB/T10586 -Technical Conditions for Damp Heat Test Chambers;
GB/T5170.5-2016 "Test Methods for
Environmental Testing Equipment for Electrical and Electronic Products: Damp
Heat Test Equipment"
JJF1101-2019 "Calibration
Specifications for Temperature and Humidity Parameters of Environmental Testing
Equipment"
Product Features
1. The temperature rise and fall process
curve is stable and maintains a constant slope change.
2. The evaporator adopts a unique pure
copper fin design to dissipate heat more quickly and evenly.
3. Appearance spray coating or stainless
steel is optional. The stainless steel surface is treated with matte stripe
drawing, and the color of electrostatic spray coating can be freely selected.
4. Multi layers glass observation window,
which can be used for observing the test object during the experiment. The
window is equipped with an anti-sweat electric heater device to prevent water
vapor condensation and droplets, and a high brightness LED light to maintain
illumination inside the box
5. The double-layer isolation and airtight
tightness of the box door can effectively isolate internal temperature leakage.
6. The touch screen controller can
simultaneously display measured values, set values, time, etc.
7. The optimized design scheme ensures that
the machine operates with a noise level of ≤ 65dB.
Imported refrigeration components such as "Tecumseh fully enclosed
compressor from France", "Emerson compressor from the United
States", "Bitzer semi enclosed compressor from Germany", and
"GEA semi enclosed compressor from Germany" are used to form an
energy-saving, efficient, and environmentally friendly refrigeration system.
Technical Data
|
Model No. |
ST-RCT80 |
ST-RCT 100 |
ST-RCT 150 |
ST-RCT 225 |
ST-RCT 408 |
ST-RCT 512 |
ST-RCT 800 |
ST-RCT 1000 |
|
Internal Size (W×H×D) (mm) |
400×500×400 |
500×500×400 |
500×600×500 |
600×620×600 |
800×600×850 |
800×800×800 |
1000×800×1000 |
1000×1000×1000 |
|
External Size (W×H×D) (mm) |
950×1400×1000 |
1050×1400×1000 |
1050×1500×1100 |
1150×1560×1100 |
1350×1600×1200 |
1350×1750×1200 |
1350×1850×1400 |
1350×1950×1600 |
|
Temperature Range |
G: -20℃~100℃; C: -70℃~100℃(150℃); Z: -40℃~100℃(150℃); D: -70℃~100℃(150℃) |
|||||||
|
Humidity Range |
20%~98%RH / 30%~98%RH / 10%~98%RH (5%~98%RH as optional, customized available) |
|||||||
|
Temperature & Humidity Uniformity |
Temp uniformity ≤1℃; RH uniformity ≤2.0%RH @10℃~85℃; RH uniformity ≤3.0%RH when RH>75%; RH uniformity ≤5.0%RH when RH≤75% |
|||||||
|
Temperature & Humidity Fluctuation |
Temp: ±0.5℃; RH: ±2.0%RH |
|||||||
|
Temperature & Humidity Deviation |
Temp: ±1.0℃; RH: ±2.0%RH |
|||||||
|
Sensor |
Temp: PT100; Humidity: Wet & Dry Bulb / Electronic |
|||||||
|
Heating Up Time |
-20℃→100℃ within 30min; -40℃→100℃ within 40min; -70℃→100℃ within 50min |
|||||||
|
Cooling Down Time |
+20℃→-20℃ within 35min; +20℃→-40℃ within 45min; +20℃→-70℃ within 55min |
|||||||
|
Touch Screen Controller |
Chinese & English UI; programmable operation & cycle mode; real-time curve tracking; PID auto-tuning; authority access control etc. |
|||||||
|
Communication Function |
USB port for test data export; RS-485 communication for upper computer; Ethernet remote control & mobile APP connection |
|||||||
|
Auxiliary Function |
Fault alarm & fault code display |
|||||||
|
Inner Chamber Material |
SUS304 Stainless Steel |
|||||||
|
Outer Cabinet Material |
Cold-rolled steel plate with electrostatic spraying / stainless steel (customizable spray color) |
|||||||
|
Insulation Material |
Rigid polyurethane foam + glass fiber wool (glass fiber wool required when temp >150℃) |
|||||||
|
Refrigeration Type |
Single-stage compressor refrigeration (air-cooled / water-cooled) Dual-stage cascade compressor refrigeration (air-cooled / water-cooled) |
|||||||
|
Refrigeration Compressor |
Original imported French "Tecumseh" hermetic reciprocating compressor / American Copeland scroll compressor |
|||||||
|
Refrigeration Components |
Evaporator, condenser, oil separator, filter, liquid receiver, high-low pressure switch, expansion valve, solenoid valve, hand valve, check valve, sight glass, accumulator etc. |
|||||||
|
Refrigerant |
Single-stage: R404A; Cascade: R404A+R23 (ozone-friendly) |
|||||||
|
Heating System |
Fin type stainless steel heater / stainless steel finned tube heater |
|||||||
|
Humidifying System |
Split independent humidifier with φ200mm visible observation window |
|||||||
|
Standard Accessories |
1 set of electrothermal glass observation window; 2 layers adjustable sample rack up & down; test hole φ50mm; 1 set built-in LED lamp; 1 USB port; 1 Ethernet port |
|||||||
|
Safety Protection Devices |
Over-temperature protection, heating dry-burn protection, humidification dry protection, fan overload, compressor overheat / overcurrent / phase loss protection, water shortage alarm, phase sequence protection etc. |
|||||||
|
Weight(Kg) |
200 |
230 |
300 |
400 |
450 |
500 |
550 |
600 |
|
Max Power |
4KW |
4KW |
5KW |
6KW |
8KW |
9KW |
11KW |
12KW |
|
Power Supply |
AC220V 50Hz Single-phase Three-wire |
AC380V ±10% 50Hz Three-phase Five-wire |
||||||
