Product Description

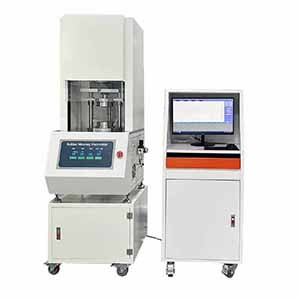

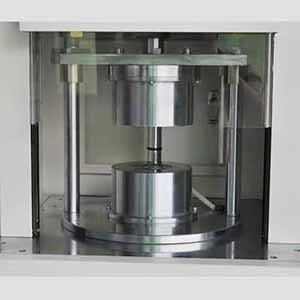

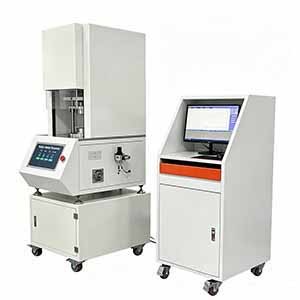

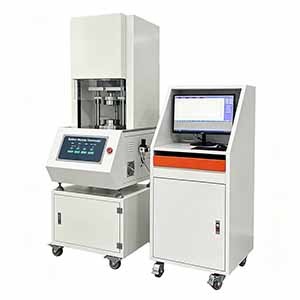

Mooney Viscometer viscosity for rubber vulcanization index determination. Sample in a certain temperature and pressure, the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the rubber anti-shear torque. Is reclaimed rubber, rubber, wire and cable industry indispensable instrument.

Meet the Standards

1）GB 9869-1997 Determination of vulcanization properties of rubber compounds (disk oscillation sulfide meter method)

Determination of Mooney viscosity of unvulcanized rubber

2）GB / T 1233 - 92 Determination of initial vulcanized rubber compounds (Mooney viscometer

method) Rubber - Method for the determination of vulcanization properties of rubber compounds by disc oscillation vulcanization apparatus

Technical specification of rubber garden swing vulcanizer

3）HG / T 3242 rubber Mooney viscometer technical conditions Rubber - Determination of vulcanizability using a rotorless vulcanizing apparatus

4）ISO 6502: 1991 (E) Rubber - Determination of vulcanizability using a rotorless vulcanizer

5 ） ASTM D5289-93 (a) Standard Test Method for Rubber Properties - Determination of Vulcanization Properties by a Rotorless Vulcanizer

6）ISO 289-1 (1994) Unvulcanized rubber - Determination with a shear disc viscometer

7）ASTM D1646 Standard Test Methods forRubber—Viscosity, Stress Relaxation, and Pre-VulcanizationCharacteristics (Mooney Viscometer)

Applicable Industry

Widely used in the measurement of quality inspection; rubber research; automotive

manufacturing; wire and cable; medical equipment; civil aviation; institutions of higher learning;

research laboratories; technical supervision departments; petrochemical; tire production; other

industries.

Product Features

1. Test Standard Modular Function: Provides the user to set the required test settings, covering GB, ASTM, DIN, JIS,BS ... and other test standards.

2. Test information: provide users to set all the test data, a permanent importation.

3. Graph Curve Scale Auto Scale, allows the graph to be displayed at the best scale. And real-time graphics in the test dynamic Switch.

4. Temperature control circuit by the monitoring module, platinum resistance, heater composition, can automatically track changes in power grid and ambient temperature, PID parameters automatically amend，to achieve rapid, precise temperature control purposes.

5. Computer control and interface board for data collection, preservation, processing and printing of test results and curves.

Technical Parameter
