- ST-80

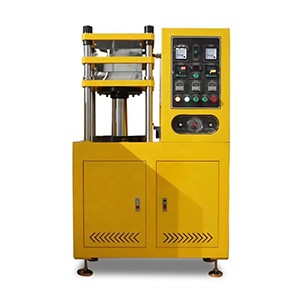

The raw materials are placed in the casting mold and sandwiched between the pressure and temperature instrument type vulcanization machine heating plate, so as to shape the raw materials and serve as the basis for mass production of ingredients in the factory.
Product Description
The raw materials are placed in the casting mold and sandwiched between the pressure and temperature instrument type vulcanization machine heating plate, so as to shape the raw materials and serve as the basis for mass production of ingredients in the factory.
Technical Data
|
No. |
Parameter Name |
Technical Specifications |
|
1 |
Capacity |
20 / 30 / 50 tons (optional) |
|
2 |
Temperature range |
Room temperature ~ 300 °C |
|
3 |
Temperature controller |
LED digital display, key setting and input, digital display output; programmable type (optional) |
|
4 |
Temperature accuracy |
± 2 °C |
|
5 |
Heating method |
Electric heating tube |
|
6 |
Cooling method |
Tap water cooling (water source connection port, water to be provided by user) |
|
7 |
Heating time |
Approximately 35 minutes from room temperature to 200 °C |
|
8 |
Timer |
LED digital display, range: 0.1 s ~ 99 min ~ 9.9 h (adjustable) |
|
9 |
Exhaust frequency |
0 ~ 10 times (adjustable) |
|
10 |
Gradient pressure |
2 stages |
|
11 |
Pressure gauge |
0 ~ 350 kg/cm² |
|
12 |
Hot platen size |
300 × 300 × 60 mm |
|
13 |
Platen distance |
80 mm |
|
14 |
Working area |
Double-layer structure, upper heating and lower cooling |
|
15 |
Platen material |
SKD chromium-molybdenum alloy |
|
16 |
Platen surface treatment |
HRC60 mirror chrome plating |
|
17 |
Hydraulic system |
Driven by GPY oil pump, equipped with high-performance electro-hydraulic non-resistance cylinder. Adopts constant speed control mode, with automatic pressure compensation, oil pump delay and time stop functions. |
|
18 |
Hydraulic medium |
Mobil 32# antifreeze hydraulic oil (to be provided by user) |
|
19 |
Power |
8 KW |
|
20 |
Overall dimension (W × D × H) |
920 × 470 × 1425 mm |
|
21 |
Power supply |
3-phase 5-wire system, AC 380V, 20A (power connection to be completed by user) |
|
22 |
Net weight |
Approximately 658 kg |
|
23 |
Accessories |
2 pcs of stainless steel mirror fabric plates, 300 × 2 mm |
