- ST-035

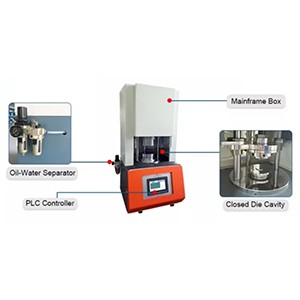

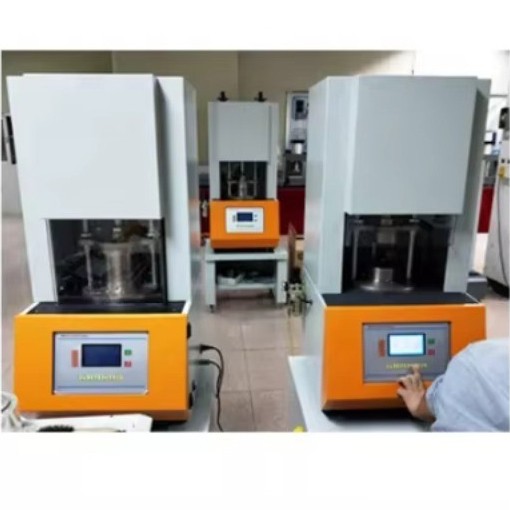

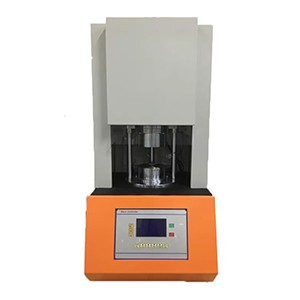

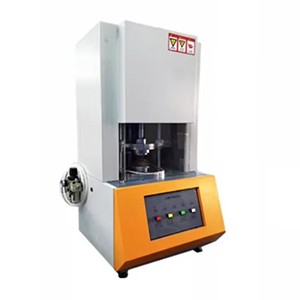

It is designed to determine the viscosity, coking and vulcanization index of raw rubber or rubber. Computer control, data display, automatic calibration, is an ideal experimental equipment for rubber industry and scientific research units. Imported intelligent digital temperature controller, simple adjustment and setting, wide temperature range. The microcomputer adopts imported chips, which have
Product Description
It is designed to determine the viscosity, coking and vulcanization index of raw rubber or rubber. Computer control, data display, automatic calibration, is an ideal experimental equipment for rubber industry and scientific research units. Imported intelligent digital temperature controller, simple adjustment and setting, wide temperature range. The microcomputer adopts imported chips, which have high reliability, and all data can be automatically calculated and printed.
Technical Data
|
Model |
ST-035 |
ST-036 |
|
Temperature fluctuations in the mold |
Room temperature ~ 200 °C |
|
|
Temperature fluctuations in the mold |
±0.5℃ |
±0.1℃ |
|
Temperature display resolution |
0.1℃ |
|
|
Rate of temperature rise |
Room temperature ~ 100 °C for about 6-10 minutes |
Room temperature ~ 100 °C for 6-10 minutes |
|
Torque measurement range |
0-200 MV |
|
|
Mooney test accuracy |
± 0.5MV |
± 0.2MV |
|
Torque resolution |
0.1MV |
|
|
Rotor frequency |
2 ± 0.02 rpm |
|
|
Temperature PID control |
± 0.1 °C |
|
|
upper and lower parts |
Separator plate temperature control |
|
|
power supply |
220 V, 1 phase, 50Hz 680W |
|
|
size |
560*580*1160 mm |
|
|
weight |
About 300 kg |
|
