Product Description

Product Introduction

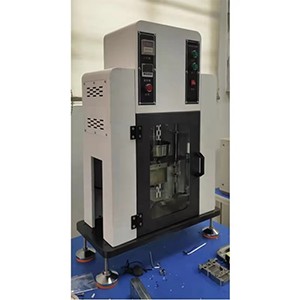

An injection molding machine is a mechanical device. It is usually composed of injection system, clamping system, pressure transfer system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, etc.

The injection system is one of the most important components of the injection molding machine, and there are generally three main forms: plunger type, screw type preformed plunger type. At present, screw type is the most widely used. Its role is to heat and plasticize a certain amount of plastic in a cycle of the injection molding machine, and the molten plastic can be injected into the mold cavity through the screw at a certain pressure and speed.

Features

1. Humanized worktable height design, suitable for large machines, comfortable operation, thus reducing the labor intensity of operators and improving work efficiency.

2. The injection molding machine adopts pneumatic operation design to achieve the requirements of fast, simple and easy maintenance.

3. The moving parts of the template and column are made of high rigidity copper bushings to meet the requirements of smooth movement, long service life and high precision.

4. The injection molding system adopts pneumatic double guide column design, which has stable movement and high injection accuracy.

5. Artificial feeding.

6. The clamp mold is easy to install, easy to disassemble, which can greatly improve the output and work efficiency.

7. The one-sided control of mold adjustment is convenient to see from the perspective, and the humanized angle is convenient for quick mold replacement.

8. The humanized design of the launching platform lifting system is convenient, fast, time-saving and labor-saving to adjust or change the mold.

Technical Data
