Automatic Tablet Hardness Tester pharmaceutical Tablet Hardness Tester digital Tablet Hardness Tester
Product Description
1.Product Introduction

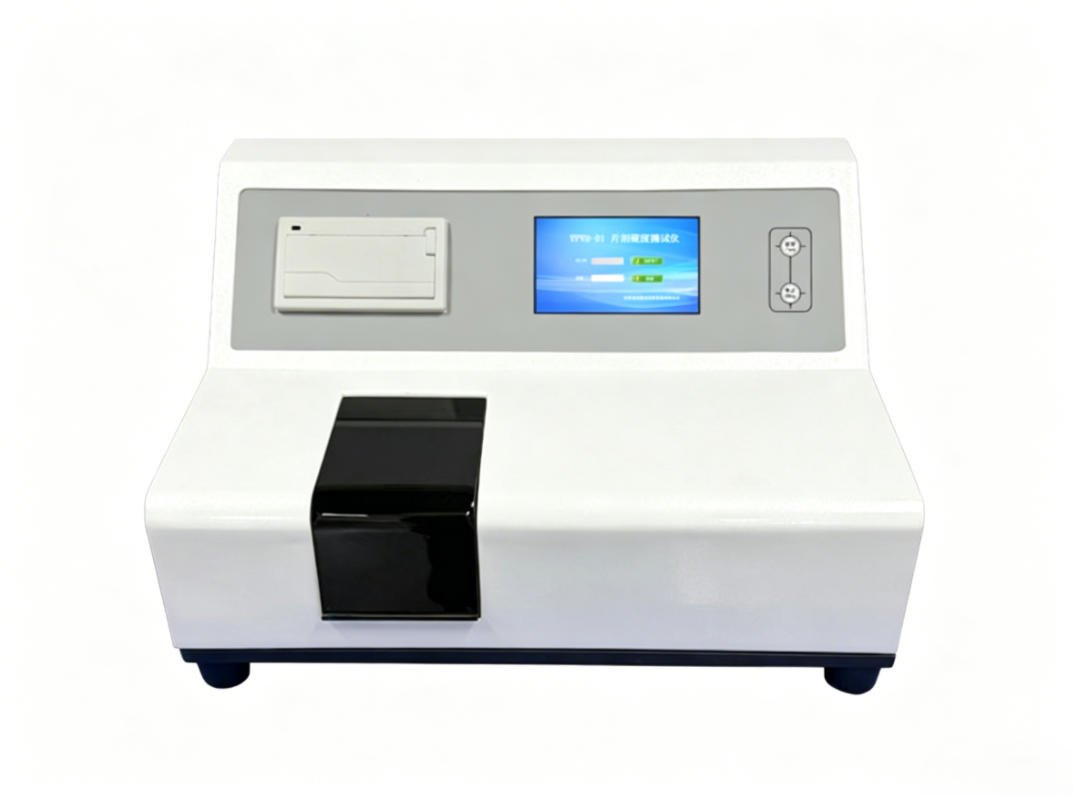

The Tablet Hardness Tester is a professional instrument dedicated to measuring tablet breaking force. It serves as critical testing equipment for pharmaceutical manufacturing and scientific research labs, ensuring tablets comply with official specifications and maintaining stable pharmaceutical quality.
2.Test Principle
Place the tablet sample between compression platens. Gradually apply compressive load and record the maximum breaking force when the tablet fractures, which reflects the tablet’s crushing resistance strength.
3. Product Features
- Automatic feeding, data statistics and built-in printout function
- High-precision load sensor for accurate measurement results
- Supports continuous batch testing of up to 100 tablets per group
- Automatic tablet diameter detection to save testing time
- Real-time peak force capture and automatic peak value lock
- Auto-calculates maximum, minimum, average, root mean square and coefficient of variation; prints full test & statistical reports automatically
- Fully automatic hardness testing; split screen display of real-time force curve and instantaneous load value
4. Technical Specifications
| Index | Parameter |
|---|---|
| Load Sensor Capacity | 500 N (50 kg standard) |
| Accuracy Class | Better than Class 0.5 |
| Force Resolution | 0.01 N |
| Repeatability Error | ≤±1% FS |
| Max Batch Test Quantity | 100 tablets |
| Applicable Tablet Diameter | 2–35 mm (customizable for special sizes) |
| Sample Loading Mode | Manual placement |
| Diameter Measurement Resolution | 0.01 mm |
| Overall Dimension | 440 mm (L) × 300 mm (W) × 220 mm (H) |
| Rated Power | ≤100 W |
| Net Weight | 22 kg |
5. Applicable Standards
Chinese Pharmacopoeia, JB/T 20104-2007 Tablet Hardness Tester, Q/12XQ0186－2013 Corporate Standard
6. Standard & Optional Configurations
- Standard Accessories: Main unit, mini thermal printer, sample collection tray, cleaning brush
- Optional Parts: Dedicated PC software, customized fixtures & structures
