- STV-700
The production unit with notched specimen is a sample preparation equipment with simple structure, easy operation, milling or more samples, and very high precision. The knives are made of special imported alloy materials. They were manufactured in Europe specifically for GAP prototypes. The hardness of the tool is greater than HRC60, and the surface roughness is less than ra 0.4. It can be ground
Product Description
Product Introduction

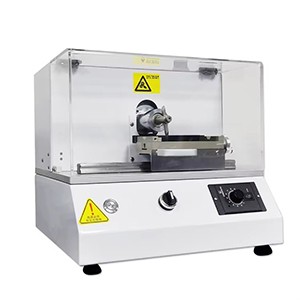

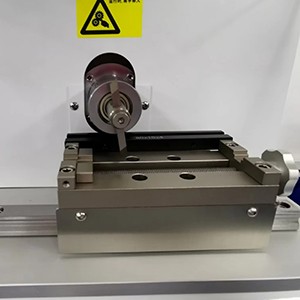

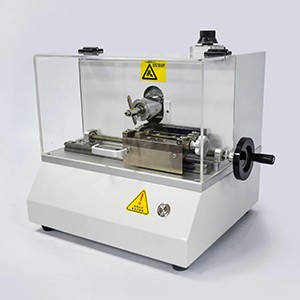

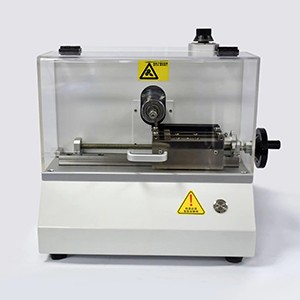

The production unit with notched
specimen is a sample preparation equipment with simple structure, easy
operation, milling or more samples, and very high precision. The knives are
made of special imported alloy materials. They were manufactured in Europe
specifically for GAP prototypes. The hardness of the tool is greater than
HRC60, and the surface roughness is less than ra 0.4. It can be ground
repeatedly and has a long service life.
Standard
ISO 179-2000 Determination of the
impact properties of plastics
ISO 180-2000 Plastics. Determination of
Impact Strength of Izod
ASTM D256-2010: Standard Test Method for
Determination of Impact Resistance of Plastic Cantilever Beams
JB/T8761-1998: Izod Plastic Impact Tester
JB/T8762-1998: Charpy Plastic Impact Tester
Technical Data
Type of cutter:
Type A: 45 ° ± 1 °, R = 0.25 ± 0.025 (standard equipment)
Type B: 45 ± 1 ° r = 1.0 ± 0.025 (optional).
Type C1: 45 ± 1 ° r = 0.1 ± 0.02 (optional)
Type C2: Thickness 1 = 2 ± 0.1 r< = 0.1 (optional)
Type C3: Thickness 2 = 0.8 ± 0.1 r = 0.2 ± 0.05 (optional)
