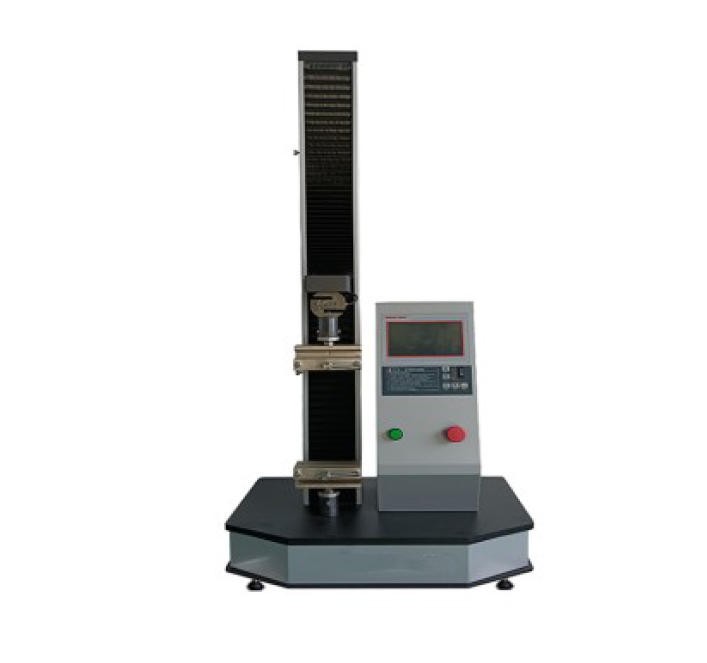

Product Description

【Range of application】：
Used to test the mechanical properties of fabrics, non-wovens, paper, webbing and nonwovens, such as breaking strength, elongation at break, tear, peel, top break, stitch and seam slip. And has a fixed speed, positioning, fixed time, fixed load, fixed elongation and other test functions.

【meet the standard】：
Break strength (strip method): GB/T3923.1；ISO13934.1；ASTM D5035；
(Sampling method):GB/T3923.2；ISO13934.2；ASTM D5034；
Tearing of strength (tongue-shaped tear): GB/T3917.2；ISO13937.2；ASTM D2261；
(Trapezoidal tear): GB/T3912.3；ISO9074.4； ASTM D5587；
Stitch Slip: GB/T13772.1/2/3；ISO13936.1/2；ASTM D434；
Peel off the powerful: FZ/T01085；ASTM D2724/3936； AATCC 136；FZ/T80007.1；FZ/T01010；FZ/T60011
Steel ball burst through: GB/T19976；FZ/T01030；ISO3303；ASTM D3787/6796；
Ball burst: GB/T3916/14344；ISO2062；ASTM D2256；
Other standards: GB/T4689.6；GB/T13763；GB/T13773；GB/T14800；GB/T15788；
GB/T16989 ； FZ/T01031 ； FZ/T20019 ； FZ/T60005 ； FZ/T60006 ； FZ/T70007 ； ISO13935.1/2；ASTM D1683；ASTM D4964；ASTM D5733/5735；BS 3320

【Instrument features】：
1. It is controlled by Philips 32-bit industrial microcontroller, and the 18-bit A/D converter produced by AD Company in the United States has strong anti-interference performance and fast data processing and transmission.
2.The dynamic sampling frequency is more than 1000 times per second, which can effectively and correctly capture the data peaks during the test.
3.The touch screen displays a full Chinese menu (customizable English menu), which is easy to operate.
4.The computer controls the online and dynamically tracks the working state of the instrument; transmits test data and displays the tensile curve in real time.
5.Ball screw transmission, ultra quiet operation.
6.Built-in automatic digital calibration system for force values.
7.Force unit: CN, N, Kg and lb are freely converted.
8.It has overload, overstroke, overpressure and overheating protection to ensure
the safe and reliable operation of the instrument.

【technical parameter】:
1.Force range: 30kg; 50kg; 100kg; 250kg; full scale 1~100%; (optional)
2.Force measurement accuracy: ≤±0.5%F.S;
3.Stretching speed: 1~500mm/min (any setting);
4.Response speed: 1~500mm/min (any setting);
5.Sampling frequency:>1000 times/second;
6.Extension resolution: ≤0.01mm;
7.Effective stroke: 600mm;
8.Power supply: AC220V±10%;
9.Power rate: 600w.
10.Size: 670 x 480 x 1400mm;
11.Net weight: 115kg.
