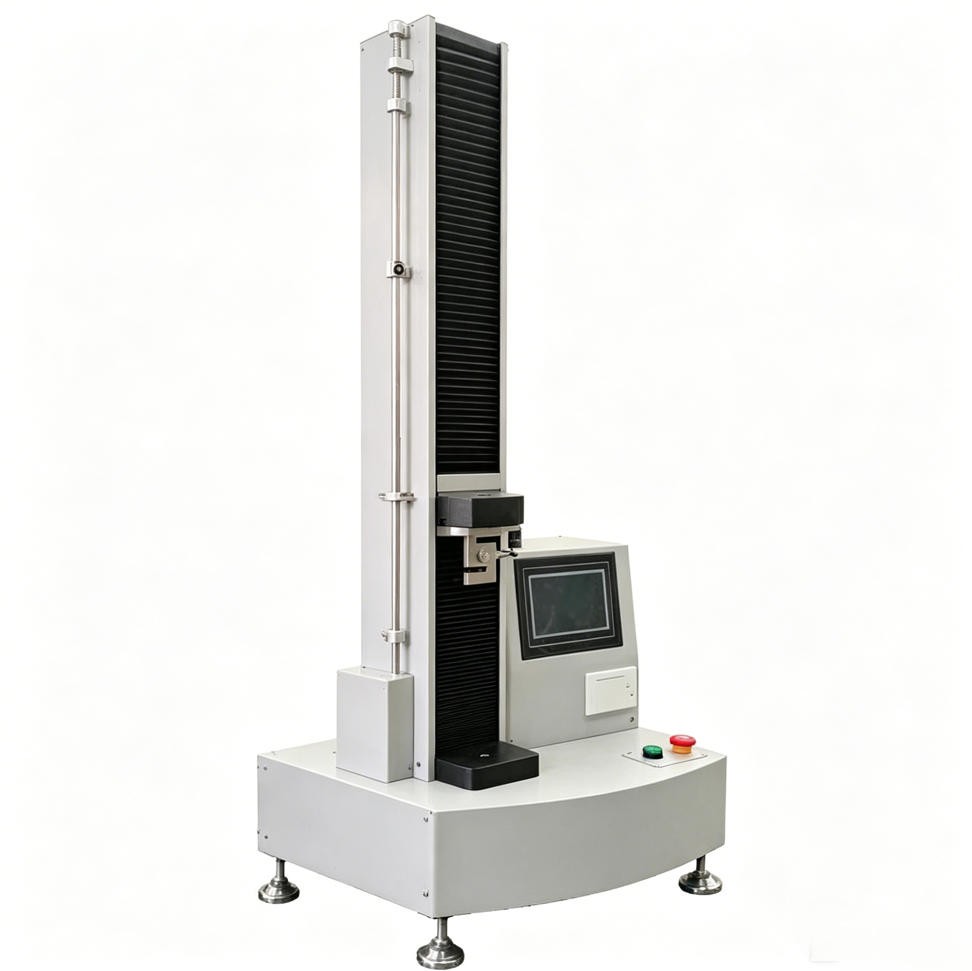

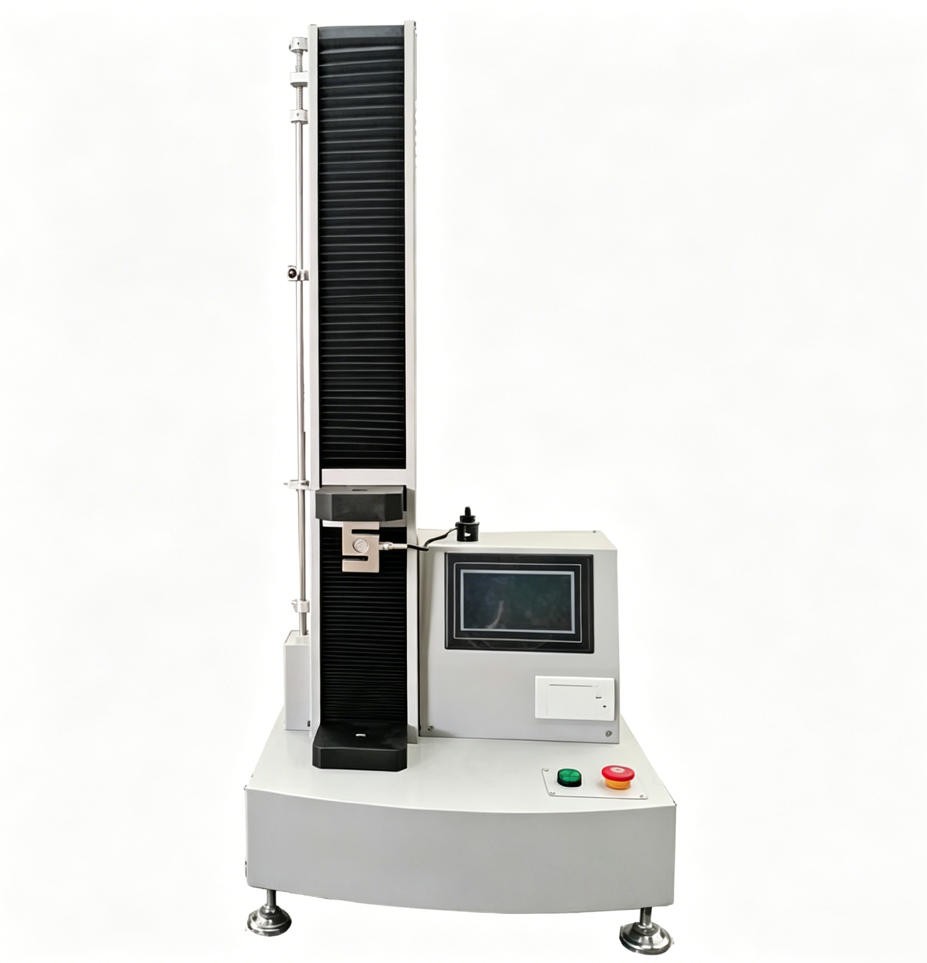

Product Description

This tester is applicable to test tensile deformation rate, peeling performance, tearing performance and other properties of plastic film, paper tube, composite film, flexible packaging materials, conveyor belts, adhesives, adhesive tapes, rubber products, paper, plastic-aluminum panels, enameled wires, non-woven fabrics, textiles and other products.

Instrument Features

1. Equipped with dot-matrix large blue-screen LCD, which can fully display data, test results and curves.
2. Supported by professional software. The whole test process is controlled by single-chip microcomputer, and the machine can return to the original position automatically after test.
3. Each function operates independently with standard measurement units, and no manual conversion is required. It can perform statistical analysis and calculation on grouped samples, and output arithmetic mean value, maximum value and minimum value.
4. Adopts power-off parameter memory function and force overload protection function.
5. Multiple test result outputs are available, including maximum force, elongation, maximum tensile strength, elongation at specified force, and force at specified elongation.
6. It adopts high-performance DC servo system and screw transmission with servo speed regulation. The machine runs silently and maintains stable and reliable overall performance.
7. Built-in power overload automatic protection device. Adopts thin-film touch buttons for long service life.
8. Compatible with external printers to output printed test reports.

Instrument Functions

It can conduct standard tensile test, test tensile strength and deformation rate, tensile force and deformation rate, tear strength, 180° peel test (including T-peel test), 90° peel test and other tests.

Key Technical Parameters

1. Maximum test force: 100N/500N/1000N/2000N/5000N (optional)
2. Measuring range of test force: 2% - 100% of the maximum test force
3. Test force accuracy: better than ±1% of the indicated value
4. Beam displacement measurement: resolution up to 0.01mm
5. Deformation accuracy: deviation ≤ ±1%
6. Speed range: 0.2-500mm/min
7. Effective test space: 700mm
8. Host structure: single-arm structure
9. Host dimensions: 530×400×1560 mm
10. Weight: 80Kg
11. Working environment: Ambient temperature ~ 45℃, relative humidity 20%~80%

Main Functions and Characteristics of Main Unit

1. The speed control system is driven by stepper motor and reducer, featuring stable and reliable performance. It is equipped with protection devices against overcurrent, overvoltage and overload. The adjustable speed range is 0.2~500mm/min, and the machine supports automatic return.
2. The transmission part adopts arc synchronous toothed belt and precision screw pair for power transmission, which operates stably with low noise and high transmission efficiency.
3. It ensures the concentricity during testing and eliminates the impact of irregular-shaped samples on the sensor.

System Configuration

1. Testing machine main body

1.1 1 set of high precision stepper motor

1.2 1 set of reducing system

1.3 1 load sensor

1.4 1 set of precision screw pair

1. 1 set of digital control system
2. 1 photoelectric encoder
3. 1 set of auxiliary disassembly tools
4. Document list: Operating instructions, Certificate of conformity, Packing list

After-sales Service

The warranty period is one year starting from the equipment acceptance date. We provide lifetime maintenance and free services within the warranty period.

1. The testing equipment we provide complies with current national and industrial standards to ensure advanced technology and reliable performance.
2. We supply spare parts and accessories all year round.
3. We provide long-term technical support. For equipment maintenance and repair, we will propose solutions within 24 hours, and our on-site engineers will arrive at the destination within two days if on-site service is required.
