- ST-AF-64
- 1700/1400/1200℃
- 1-64L or custom made

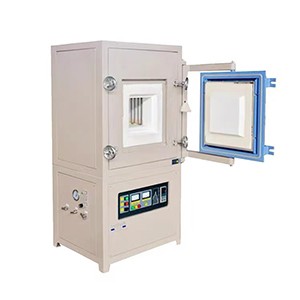

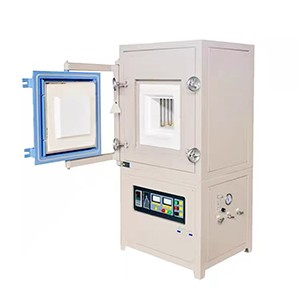

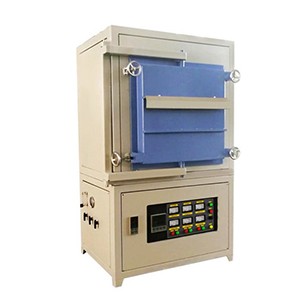

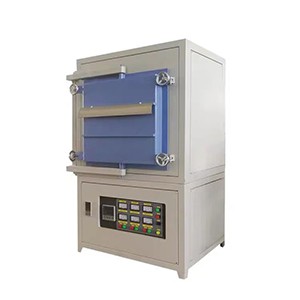

This high-temperature atmosphere furnace ST-AF series ensures that the oxygen content inside the furnace is reduced to a minimum through pre-vacuuming. Then, nitrogen, argon, or a nitrogen-hydrogen mixture is introduced to achieve ideal heat treatment results under protected atmosphere conditions. Due to its excellent atmospheric environment and compact practicality, it is currently widely used in
Product Description
This high-temperature
atmosphere furnace ST-AF series ensures that the oxygen content inside the
furnace is reduced to a minimum through pre-vacuuming. Then, nitrogen, argon,
or a nitrogen-hydrogen mixture is introduced to achieve ideal heat treatment
results under protected atmosphere conditions. Due to its excellent atmospheric
environment and compact practicality, it is currently widely used in materials
laboratories or in small-batch production of semiconductors, silicon nitride,
and other products.
Product Features
1. Temperature range: Ambient temperature ~
1700℃
2. Furnace chamber made of polycrystalline
alumina fiber, ensuring a uniform and pollution-free temperature field.
3. Fully enclosed furnace chamber with
double-layered thickened steel plates, capable of withstanding 0.1 MPa
pressure.
4. Reinforcing ribs made of 12mm solid
square steel on the top, left, right, and back sides, ensuring no deformation
even under vacuum. Maximum vacuum level: -0.08 MPa.
5. Temperature control system uses an
industrial-grade 0.2-level intelligent instrument with PID regulation and
51-segment programming.
6. Excellent furnace door sealing
performance, with four handwheels for secure locking and silicone ring sealing.
Standard accessories for a high-temperature atmosphere furnace:
Furnace door baffle bricks (except for model 1200)
High-temperature gloves
Crucible tongs
Instruction manual
Two heating elements (except for model 1200)
Rotary vane vacuum pump
Optional accessories:
Direct-drive vacuum pump
Touchscreen/computer connection software
Dedicated crucible/multi-layer kiln furniture
Heating elements (silicon molybdenum rod, silicon carbide rod)
Gas system (float/proton flow meter, 2-channel/3-channel gas)
Technical Data
|
Item |
Specification |
|
Max Temperature |
1700°C (Working duration less than 2 hours) |
|
Temperature Controller (PID Temperature Control Instrument) |
• AI PID instrument for automatic temperature control. Bidirectional anti-parallel thyristor voltage regulation realizes precise furnace temperature control with current limiting function, which avoids tripping and electrical component burnout caused by unstable supply voltage and sudden current surge. The thyristor we use is world-famous brand: SEMIKRON. • 51-segment programmable curve, automatically completes heating, holding and cooling according to preset programs with one-click operation, no manual duty required. • Built-in auto-tuning function for temperature control parameters. • Equipped with over-temperature alarm and thermocouple break alarm, it will automatically cut off power supply to provide reliable protection. |
|
Temperature Control Accuracy |
±1°C |
|
Heating Rate |
0–20°C/min |
|
Thermocouple |
Type B (Platinum-Rhodium 30/Platinum-Rhodium 6); thermocouple protection tube made of 99.7% purity corundum tube |
|
Heating Element |
High-purity molybdenum disilicide heating rod |
|
Standard Vacuum Degree |
-0.08 MPa |
|
Available Gas |
Nitrogen, Argon, or nitrogen-hydrogen mixed inert gas |
|
Furnace Chamber |
Three-layer full fiber lining for the whole hearth: • Layer 1: 1800-grade polycrystalline alumina ceramic fiber, guarantees sufficient hearth structural strength and excellent thermal insulation performance. • Layer 2: 1430-grade polycrystalline alumina ceramic fiber. • Layer 3: Multiple layers of thermal insulation cotton |
|
Furnace Shell Structure |
• Made of high-strength carbon steel; treated with acid pickling & phosphating rust removal, electrostatic plastic spraying for beautiful appearance. • Double-layer air-cooled furnace shell with 2–4 built-in cooling fans, ensuring furnace shell surface temperature below 60°C. |
|
Product Warranty |
1. One-year free full machine warranty for high temperature box furnace starting from acceptance date. On-site maintenance will be arranged if equipment fails, and lifelong technical support is provided. 2. Spare parts are supplied at cost price after the warranty period expires. |
1200°C Atmosphere Furnace Standard Size
|
Model |
Max Temperature |
Furnace Size |
Voltage |
Power |
|
ST-12AF-1 |
1200℃ |
100*100*100mm |
220V |
0.8kW |
|
ST-12AF-2 |
1200℃ |
120*120*130mm |
220V |
1.2kW |
|
ST-12AF-3 |
1200℃ |
150*150*150mm |
220V |
2.5kW |
|
ST-12AF-5 |
1200℃ |
150*150*200mm |
220V |
3kW |
|
ST-12AF-8 |
1200℃ |
200*200*200mm |
220V |
5kW |
|
ST-12AF-12 |
1200℃ |
200*200*300mm |
220V |
6kW |
|
ST-12AF-27 |
1200℃ |
300*300*300mm |
380V |
8kW |
|
ST-12AF-36 |
1200℃ |
300*300*400mm |
380V |
10kW |
|
ST-12AF-64 |
1200℃ |
400*400*400mm |
380V |
16kW |
1400°C Atmosphere Furnace Standard Size
|
Model |
Max Temperature |
Furnace Size |
Voltage |
Power |
|
ST-14AF-1 |
1400℃ |
100*100*100mm |
220V |
1kW |
|
ST-14AF-2 |
1400℃ |
120*120*130mm |
220V |
2kW |
|
ST-14AF-3 |
1400℃ |
150*150*150mm |
220V |
3kW |
|
ST-14AF-5 |
1400℃ |
150*150*200mm |
220V |
4kW |
|
ST-14AF-8 |
1400℃ |
200*200*200mm |
220V |
5kW |
|
ST-14AF-12 |
1400℃ |
200*200*300mm |
220V |
7kW |
|
ST-14AF-27 |
1400℃ |
300*300*300mm |
380V |
9kW |
|
ST-14AF-36 |
1400℃ |
300*300*400mm |
380V |
11kW |
|
ST-14AF-64 |
1400℃ |
400*400*400mm |
380V |
18kW |
1700°C Atmosphere Furnace Standard Size
|
Model |
Max Temperature |
Furnace Size |
Voltage |
Power |
|
ST-17AF-1 |
1700℃ |
100*100*100mm |
220V |
1kW |
|
ST-17AF-2 |
1700℃ |
120*120*130mm |
220V |
3kW |
|
ST-17AF-3 |
1700℃ |
150*150*150mm |
220V |
4kW |
|
ST-17AF-5 |
1700℃ |
150*150*200mm |
220V |
5kW |
|
ST-17AF-8 |
1700℃ |
200*200*200mm |
220V |
7kW |
|
ST-17AF-12 |
1700℃ |
200*200*300mm |
220V |
8kW |
|
ST-17AF-27 |
1700℃ |
300*300*300mm |
380V |
10kW |
|
ST-17AF-36 |
1700℃ |
300*300*400mm |
380V |
12kW |
|
ST-17AF-64 |
1700℃ |
400*400*400mm |
380V |
20kW |
