- ST-SF-64
- 1300°C
- RT ~ 1250°C
- 400×400×400 mm (customizable)
- ±1°C

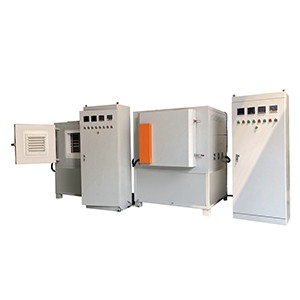

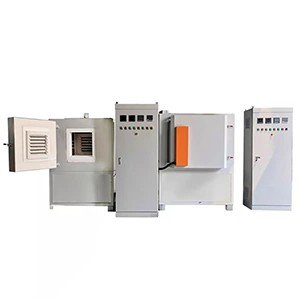

This integrated debinding and sintering furnace is primarily designed for the processing of precision ceramics—such as zirconia and alumina—produced via 3D printing or other forming methods. It is also suitable for the integrated debinding and sintering of bio-ceramics, such as hydroxyapatite (HAP).
Product Description
This integrated debinding and sintering furnace is primarily designed for the processing of precision ceramics—such as zirconia and alumina—produced via 3D printing or other forming methods. It is also suitable for the integrated debinding and sintering of bio-ceramics, such as hydroxyapatite (HAP).
Product Features
Uses imported Kanthal resistance heating elements, with a maximum operating temperature of 1300°C.
Employs 5-sided heating to ensure optimal temperature uniformity.
The furnace chamber is constructed from imported lightweight insulating firebricks, offering a longer service life and superior chamber cleanliness compared to ceramic fiber materials.
Equipped with a high-performance, stable temperature controller from Shimaden (Japan).
Active air intake system: accelerates exhaust discharge and prevents excessive concentrations of hydrocarbons released during the debinding process.
Air preheating and ceramic-tube gas distribution system: significantly improves temperature uniformity within the chamber.
Top-mounted debinding exhaust port: features programmable automatic opening and closing; the port closes automatically once the debinding cycle is complete.
Technical Data
|
Max. Temperature |
1300°C (operation time less than 2 hours) |
|
Continuous Operating Temperature |
RT ~ 1250°C |
|
Application Field |
Heat treatment for 3D ceramic printing |
|
Chamber Dimension |
400×400×400 mm (customizable) |
|
Furnace Chamber |
Imported lightweight foam bricks, longer service life & higher chamber cleanliness |
|
Temperature Controller |
Imported Shimaden (Japan) temperature controller with 180-segment programmable function |
|
Temperature Control Accuracy |
±1°C |
|
Temperature Uniformity |
±5°C |
|
Thermocouple |
Type K |
|
Heating Element |
Imported Kanthal resistance wire, 5-sided heating design |
|
Voltage |
380V |
|
Power |
20KW |
|
Furnace Shell Structure |
1. Made of high-strength carbon steel; treated with pickling & phosphating for rust removal, then electrostatic plastic spraying for nice appearance. 2. Double-layer air-cooled furnace shell equipped with 2~4 built-in cooling fans, ensuring surface temperature of furnace shell below 60°C |
|
Warranty Terms |
1. One-year free full machine warranty for debinding & sintering furnace starting from acceptance date; on-site maintenance for equipment faults, lifetime technical support provided. 2. Spare parts available at cost price after warranty expiration |
