- ST-GHM-223
- 2200℃
- ±1℃
- 223-669L
- 6×10-3 Pa

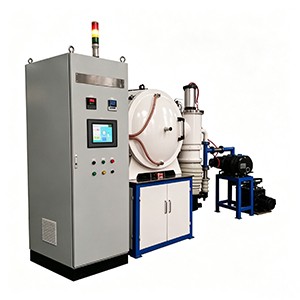

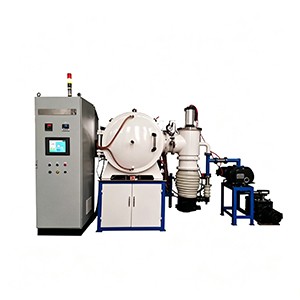

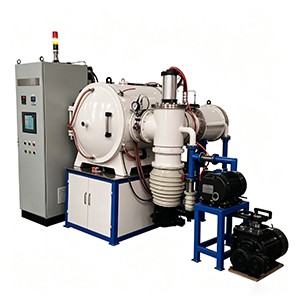

This ultra-high-temperature graphite vacuum furnace is a high-performance, intelligent heating furnace developed by our engineering team. It incorporates advanced technologies—including temperature measurement and control, intelligent systems, new materials, and furnace chamber design—adapted from international standards. It is designed for the high-temperature processing of materials under vacuum
Product Description
This ultra-high-temperature graphite vacuum furnace is a high-performance, intelligent heating furnace developed by our engineering team. It incorporates advanced technologies—including temperature measurement and control, intelligent systems, new materials, and furnace chamber design—adapted from international standards. It is designed for the high-temperature processing of materials under vacuum or protective gas atmospheres.
Product Features
1. Utilizes graphite heating elements, enabling a maximum operating temperature of 2200°C.
2. Features a composite carbon fiber furnace chamber constructed from imported soft and hard graphite felts for thermal insulation.
3. Employs a double-layer, water-cooled structure with a polished stainless steel inner shell and a carbon steel outer shell.
4. Incorporates a convenient front-and-rear door design to facilitate the loading and unloading of workpieces.
5. Equipped with an observation window for monitoring the heating process inside the furnace.
6. Uses a combination of tungsten-rhenium thermocouples and infrared pyrometers for temperature measurement; the thermocouple features an automatic insertion and retraction mechanism.
Technical Data
|
Max. Working Temperature |
2200°C |
|
Temperature Control Instrument |
• Equipped with PLC or AI PID meter for automatic temperature control. Adopts bidirectional anti-parallel silicon controlled rectifier for precise furnace temperature regulation with current limiting function, avoiding tripping and electrical component burnout caused by unstable voltage or sudden current surge. The silicon controlled rectifier used is international well-known brand: Siemens. • Supports 51 segments programmable curves; automatic heating, heat preservation and cooling according to preset programs, one-click operation without on-site monitoring. • Built-in self-tuning function for temperature control parameters. • Over-temperature alarm & thermocouple break alarm with automatic power-off protection for reliable safety. |
|
Temperature Control Accuracy |
±1°C |
|
Heating Rate |
0–15°C/min |
|
Furnace Chamber |
Soft graphite felt & hard graphite board |
|
Heating Element |
Graphite |
|
Thermocouple |
Tungsten-rhenium thermocouple |
|
Temperature Measuring Device |
Infrared pyrometer |
|
Ultimate Vacuum Degree |
6×10⁻³ Pa |
|
Furnace Shell Structure |
• Made of high-strength carbon steel; acid pickling & phosphating rust removal followed by electrostatic spraying for elegant appearance. • Double-layer air cooling furnace shell with 2–4 built-in cooling fans, ensuring surface temperature of furnace shell below 60°C. |
|
Furnace Door |
Front & rear double door design |
|
Product Warranty |
1. One-year free warranty for the whole vacuum furnace from the date of acceptance. On-site maintenance for equipment faults, lifetime technical support. 2. Spare parts supplied at cost price after the warranty period expires. |
Furnace Size
|
Model |
Heating Area |
Max Temperature |
Power |
Voltage |
|
ST-GHM-223 |
200*200*300mm |
2200℃ |
45kW |
380V |
|
ST-GHM-334 |
300*300*400mm |
2200℃ |
60kW |
380V |
|
ST-GHM-446 |
400*400*600mm |
2200℃ |
90kW |
380V |
|
ST-GHM-557 |
500*500*700mm |
2200℃ |
150kW |
380V |
|
ST-GHM-669 |
600*600*900mm |
2200℃ |
180kW |
380V |
