- ST-HVF-1
- 1-324L or custom made
- 1200℃/1700℃

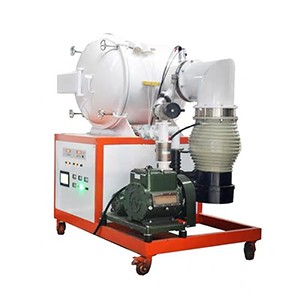

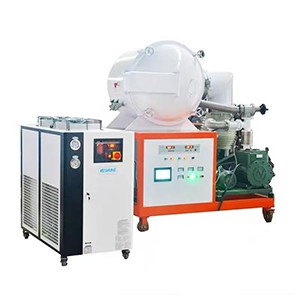

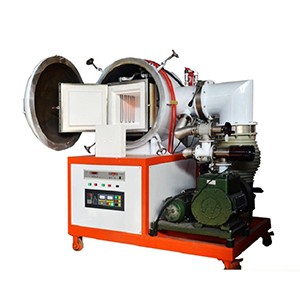

This vacuum furnace ST-HVF-1 is a high-temperature vacuum furnace with excellent cost performance, available in two models: one with a maximum temperature of 1200℃ and the other with a maximum temperature of 1700℃. It is easy to operate, provides excellent vacuum performance, and exhibits good temperature uniformity. Applications include high-temperature vacuum sintering, annealing, tempering, and
Product Description
This vacuum furnace ST-HVF-1 is a high-temperature vacuum furnace with excellent cost performance, available in two models: one with a maximum temperature of 1200℃ and the other with a maximum temperature of 1700℃. It is easy to operate, provides excellent vacuum performance, and exhibits good temperature uniformity. Applications include high-temperature vacuum sintering, annealing, tempering, and aging treatment of ceramic materials, ceramic-metal composites, refractory metals, and alloys, as well as vacuum brazing of alloy cutting tools and super hard materials.
Product Features
1. Vacuum level up to 7*10^(-3) Pa (two-stage rotary vane vacuum pump + Roots pump + diffusion pump unit)
2. 50-segment programmable temperature controller with PID adjustment.
3. Maximum temperature selectable: 1200℃ or 1700℃.
4. High-strength carbon steel, external electrostatic powder coating, aesthetically pleasing.
5. Designed with air inlet and exhaust ports; can be used for vacuuming or filled with inert gas.
6. Double-layer water cooling; furnace shell surface temperature ≤50℃.
7. Helium mass spectrometer leak detector for vacuum leak detection, ensuring a vacuum leak rate below 0.67Pa/h.
8. Pneumatic vacuum valve for easy and convenient operation.
9. Employs alumina ceramic fiber furnace lining and resistance wire or silicon molybdenum rod heating. This significantly reduces furnace costs while ensuring excellent performance.
10. Automatic shutdown upon completion of program operation, with upper limit alarm, deviation alarm, and program termination warnings, requiring no manual operation.
Optional Accessories
1. Independent control cabinet
2. PLC automatic control system
3. Furnace rapid cooling system
Technical Data
|
Item |
Specifications |
|
Max. Working Temperature |
1700°C (continuous working time less than 2 hours) |
|
Long-term Working Temperature |
1600°C |
|
Temperature Controller (PID Temperature Control Instrument) |
• AI PID instrument for automatic temperature control; bidirectional anti-parallel thyristor voltage regulation realizes precise furnace temperature control with current limiting function, avoiding damage to electrical components caused by unstable power supply and sudden current surge. The thyristor we adopt is well-known international brand: SEMIKRON. • Supports 51-segment programming curves, automatically completes heating, holding and cooling according to preset programs with one-click operation, unattended. • Built-in auto-tuning function for temperature control parameters. • Equipped with over-temperature alarm and thermocouple break alarm, power supply auto-cutoff for reliable equipment protection. |
|
Temperature Control Accuracy |
±1°C |
|
Heating Rate |
0–20°C/min |
|
Thermocouple |
Type B (Platinum-Rhodium 30%-Platinum-Rhodium 6); thermocouple protection tube made of 99.7% purity corundum tube |
|
Heating Element |
High-purity Molybdenum Disilicide Rod |
|
Ultimate Vacuum Degree |
7×10⁻³ Pa |
|
Fillable Protective Gas |
Nitrogen, Argon and other inert protective gases |
|
Application |
High-temperature vacuum sintering, high-temperature vacuum heat treatment |
|
Furnace Chamber |
Three-layer full fiber lining for the whole hearth: • Layer 1: 1800-grade polycrystalline alumina ceramic fiber, ensuring sufficient hearth structural strength and excellent thermal insulation performance. • Layer 2: 1430-grade polycrystalline alumina ceramic fiber. • Layer 3: Multiple layers of thermal insulation cotton |
|
Furnace Shell Structure |
• Fabricated from high-strength carbon steel; acid pickling & phosphating for rust removal, electrostatic plastic spraying for elegant appearance. • Double-layer air-cooled furnace shell equipped with 2–4 built-in cooling fans, keeping shell surface temperature below 60°C. |
|
Furnace Door |
Side-opening design |
|
Product Warranty |
1. One-year free whole machine warranty starting from the acceptance date of the high-temperature box furnace. 2. On-site maintenance for equipment faults, lifelong technical support available. |
1200℃ Furnace Size
|
Model |
Max Temperature (℃) |
Furnace
Size |
Volume(L) |
Power (KW) |
Heating Material |
The Highest Vacuum |
|
ST-12HVF-1 |
1200 |
100*100*100 |
1 |
1.2 |
resistance wire |
7×10-3 Pa |
|
ST-12HVF-5 |
1200 |
150*150*200 |
4.5 |
3.5 |
||
|
ST-12HVF-12 |
1200 |
200*200*300 |
12 |
5 |
||
|
ST-12HVF-36 |
1200 |
300*300*400 |
36 |
12 |
||
|
ST-12HVF-64 |
1200 |
400*400*500 |
80 |
18 |
||
|
ST-12HVF-125 |
1200 |
500*500*700 |
175 |
30 |
||
|
ST-12HVF-216 |
1200 |
600*600*900 |
324 |
50 |
1700℃ Furnace Size
|
Model |
Max Temperature (℃) |
Furnace Size |
Volume(L) |
Power (KW) |
Heating Material |
The Highest Vacuum |
|
ST-17VF-1 |
1700 |
100*100*100 |
1 |
1.5 |
silicon molybdenum rod |
7×10-3 Pa |
|
ST-17VF-5 |
1700 |
150*150*200 |
4.5 |
5 |
||
|
ST-17VF-12 |
1700 |
200*200*300 |
12 |
8 |
||
|
ST-17VF-36 |
1700 |
300*300*400 |
36 |
12 |
||
|
ST-17VF-80 |
1700 |
400*400*500 |
80 |
30 |
||
|
ST-17VF-175 |
1700 |
500*500*700 |
175 |
45 |
||
|
ST-17VF-324 |
1700 |
600*600*900 |
324 |
66 |
